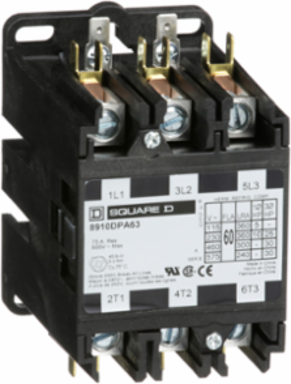

Square D 8910DPA63V06 Definite Purpose Contactor 60A 3 Pole 30HP 575VAC 3 Phase
- MPN: 8910DPA63V06
- UPC: 785901081135
- PPN: SCH-8910DPA63V06
- UNSPSC: 39121529
CAD
$340.26
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Features
- Electrical systems protection from overloads and short circuits
- Current ranging from 20A to 90A
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
| Depth | 93 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 5-5 hp 115 V AC, 1 phase10-10 hp 230 V AC, 1 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 25-25 hp 230 V AC, 3 phase |
|---|---|
| Locked Rotor Rated Current | 360 A 277 V AC300 A 460 V AC240 A 575 V AC |
| Ue Rated Operational Voltage | 600 V AC |
| Line Rated Current | 60 A |
|---|---|
| Uc Control Circuit Voltage | 440 V AC 50 Hz480 V AC 60 Hz |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | box lugs, quick connect terminals |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Number Of Poles | 3P |
| Pole Contact Composition | 3 NO |
| Product Or Component Type | Definite Purpose Contactor |
| Returnability | Yes |
| Height Nominal | 105 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL Recognized, CSA |
| Local Publishable Date | 2026-09-04 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Phase | 3 phase |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | DPA |
| Sustainable Packaging | Yes |
| Width Nominal | 65 mm |
| Customs Code | 8536490065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | DPA |
| Product Or Component Type | Definite Purpose Contactor |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
