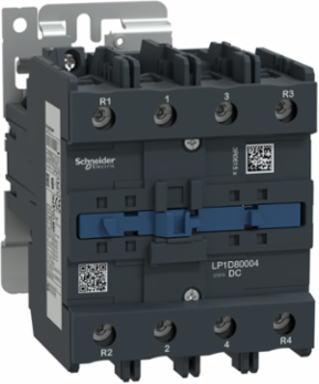

Schneider Electric LP1D80004BD TeSys Deca Contactor, 4-Pole, 125A, 24V DC, 96mm Width

MPN: LP1D80004BD
PPN: SCH-LP1D80004BD
UNSPSC: 39121529

$1052.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 125A resistive load rating. Contactor is supplied with a 24 VDC coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 7.13 inches deep. It weighs 5.92 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Features

Reliable short-circuit protection in industrial furnaces or for the heating of buildings
High making and breaking capacity
Wide range of working temperature
Simple and quick maintenance with compact size
Multi sdandards certified makes it possible to wide application

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia
Depth	181 mm

Weight	2855 g

Complementary Attributes

Ie Rated Operational Current	125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
Control Circuit Type	DC DC standard
Irms Rated Making Capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Rated Breaking Capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Uc Control Circuit Voltage	24 V24 V DC
Uimp Rated Impulse Withstand Voltage	8 kV IEC 60947

Ui Rated Insulation Voltage	power circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1
Control Circuit Voltage Limits	0.1...0.3 Uc (-40-70 °C):drop-out DC0.85...1.1 Uc (-40-55 °C):operational DC1...1.1 Uc (55-70 °C):operational DC
Maximum Operating Rate	3600 cyc/h at 60 °C
Icw Rated Short Time Withstand Current	135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit
Ue Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 3 Gn, 5...300 Hz)shocks contactor open 8 Gn for 11 ms), shocks contactor closed 10 Gn for 11 ms)
Power Dissipation Per Pole	12.5 W AC-15.1 W AC-3, 5.1 W AC-3e
Connections Terminals	control circuit: 2 1-4 mm² - cable stiffness: solidpower circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-25 mm² - cable stiffness: solidcontrol circuit: 1 1-2.5 mm² - cable stiffness: flexible with cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
Carbon Footprint Of The Distribution Phase A4	0.35115170497108616, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.5 kg CO2 eq., 0.5034847217759557
Carbon Footprint Of The Use Phase B2 B3 B4 B6	404 kg CO2 eq., 403.84999999999985
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1924
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	without built-in suppressor module
Contact Compatibility	M4
Device Short Name	LP1D
Fire Resistance	850 °C IEC 60695-2-1
Inrush Power In W	22-22 W 20 °C)
Number Of Poles	4P
Overvoltage Category	III
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	TeSys
Returnability	No
Software Version	v5.9.4
Time Constant	75 ms
Utilisation Category	AC-1
Pole Contact Comp	4 NO
Control Circuit Type 1 Coil Type	DC standard
Data Source	extrapolated product
Width Nominal	96 mm
Customs Code	8536490075
Hold In Power Consumption In W	22-22 W 20 °C
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	76

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Mounting Support	rail, plate
Tightening Torque	control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2power circuit 12 N.m connector flat Ø 6 to Ø 8 mmpower circuit 12 N.m connector hexagonal 4 mmcontrol circuit 1.2 N.m lugs-ring terminals pozidriv No 2
Certificate Agency	BV, CCC, CSA, DNV, EAC, GL, LROS (Lloyds register of shipping), UL, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	6.640550787829958, 7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	18 kg CO2 eq., 17.800248376754524
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Compatibility Code	LP1D
Contactor Application	resistive load
Electrical Durability	0.8 Mcycles 125 A AC-1 <= 440 V
Flame Retardance	V1 conforming to UL 94
Mechanical Durability	4 Mcycles
Operating Time	6...20 ms opening20...35 ms closing
Pole Contact Composition	4 NO
Product Or Component Type	contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	429 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 18 Control Circuit Voltage	24 V
Database Version	2022-01
Height Nominal	127 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	125 A (at 60 °C) for power circuit
Rated Thermal Current Ith	125 A
Functional Unit Description	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	6044.4

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	429.14543559133136
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1102005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1102005EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
