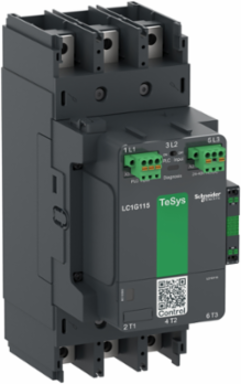

Schneider Electric LC1G225EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 225A, 3 pole/NO, 48-130VAC/DC coil

Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 225A, 3 pole/NO, 48-130VAC/DC coil
  • MPN: LC1G225EHEA
  • PPN: SCH-LC1G225EHEA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2709.26/ EA

Description

Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 225A, 3 pole/NO, 48-130VAC/DC coil

Specifications

Physical Attributes

Color
dark grey

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Operating Rate
600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4
Ie Rated Operational Current
330 A (at <40 °C) at <= 1000 V AC-1, 225 A (at <60 °C) at <= 440 V AC-3
Ue Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Maximum Motor Phase Current
225 A
Ui Rated Insulation Voltage
1000 V
Maximum Horse Power Rating60 hp at 200/208 V 60 Hz, 75 hp at 230/240 V 60 Hz, 150 hp at 460/480 V 60 Hz, 150 hp at 575/600 V 60 Hz
Icw Rated Short Time Withstand Current1.8 kA - 10 s, 1.0 kA - 30 s, 0.85 kA - 1 min, 0.56 kA - 3 min, 0.44 kA - 10 min
Uc Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Irms Rated Making Capacity2720 A at 440 V
Rated Breaking Capacity2050 A at 440 V
Uimp Rated Impulse Withstand Voltage8 kV

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
250 A aM at <= 440 V for motor, 200 A aM at <= 690 V for motor, 400 A gG at <= 690 V, 400 A UL Type J at <= 600 V
Electrical Durability
300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V
Motor Power Kw
110 kW at 400 V AC 50/60 Hz (AC-3), 110 kW at 415 V AC 50/60 Hz (AC-3), 132 kW at 440 V AC 50/60 Hz (AC-3), 132 kW at 500 V AC 50/60 Hz (AC-3), 160 kW at 690 V AC 50/60 Hz (AC-3), 132 kW at 1000 V AC 50/60 Hz (AC-3), 110 kW at 400 V AC 50/60 Hz (AC-4), 110 kW at 415 V AC 50/60 Hz (AC-4), 132 kW at 500 V AC 50/60 Hz (AC-4), 132 kW at 690 V AC 50/60 Hz (AC-4), 110 kW at 1000 V AC 50/60 Hz (AC-4), 55 kW at 230 V AC 50/60 Hz (AC-3e), 110 kW at 400 V AC 50/60 Hz (AC-3e), 110 kW at 415 V AC 50/60 Hz (AC-3e), 132 kW at 440 V AC 50/60 Hz (AC-3e), 132 kW at 500 V AC 50/60 Hz (AC-3e), 160 kW at 690 V AC 50/60 Hz (AC-3e), 132 kW at 1000 V AC 50/60 Hz (AC-3e), 55 kW at 230 V AC 50/60 Hz (AC-3), 55 kW at 230 V AC 50/60 Hz (AC-4), 129 kW at 440 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole
20 W AC-1 - Ith 330 A, 8 W AC-3 - Ith 225 A
Utilisation Category
AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5
Icw Rated Short Time Withstand Current
1.8 kA - 10 s, 1.0 kA - 30 s, 0.85 kA - 1 min, 0.56 kA - 3 min, 0.44 kA - 10 min
Carbon Footprint Of The Distribution Phase A4
7.8698615491655595, 8 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0.1 kg CO2 eq., 0.06517459628699426
Carbon Footprint Of The Use Phase B2 B3 B4 B6
868 kg CO2 eq., 868.4271889856052
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2105013
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2121
China Rohs In Scope
No
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Coil Technology
built-in bidirectional peak limiting
Connection Pitch
35 mm
Halogen Free Status
Halogen free plastic parts product
Hold In Power Consumption In W
5.0-5.0 W
Inrush Power In W
190 W
Mounting Support
plate
Overvoltage Category
III
Poles Description
3P
Product Or Component Type
contactor
Range
TeSys
Returnability
Yes
Sustainable Packaging
Yes
Total Lifecycle Carbon Footprint
927 kg CO2 eq.
Ith Conventional Free Air Thermal Current
330 A (at 40 °C)
Warranty In Months
18
Inf Motor Phase Current
225 A
Pep Code
ENVPEP2105013EN
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Data Source
extrapolated product
Functional Unit Quantity
1
Reference Lifetime In Y2
20
Energy Model Manufacturing A1 A3 2
Electricity Mix; Low voltage; 2020; China, CN
Energy Model Use B6 2
Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential In 2
55
Pn
1
Width Nominal
108 mm
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Connections Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Ie Rated Operational Current330 A (at <40 °C) at <= 1000 V AC-1, 225 A (at <60 °C) at <= 440 V AC-3
Carbon Footprint Of The End Of Life Phase C1 To C46.913375422944028, 7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A343 kg CO2 eq., 43.420708344450965
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
Local Publishable Date2025-12-16
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.00015 Ohm
Compatibility CodeLC1G
Device Short NameLC1G
Hold In Power Consumption In Va8.9-8.9 VA
Inrush Power In Va260-260 VA
Mechanical Durability8 Mcycles
Number Of Modules Per Plc Per Pc1
Pole Contact Composition3 NO
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Software Versionv6.2.4
Tightening Torque18 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Ith330 A
Control Circuit Voltage48...130 V
Rated Thermal Current Hv330 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh1051.2
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Offer Owner Code190788
Height Nominal255 mm

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Permissible Ambient Air Temperature Around The Device
-40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance
Halogen free plastic parts product
Mercury Free
Yes
Ambient Air Temperature For Operation
-25-60 °C
Circularity Profile
ENVEOLI2105013
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint926.6963088984527
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys Giga

ETIM

ETIM 8
EC000066
ETIM 9EC000066

Specifications

Country of Origin
Brazil, Czechia, France, United States
