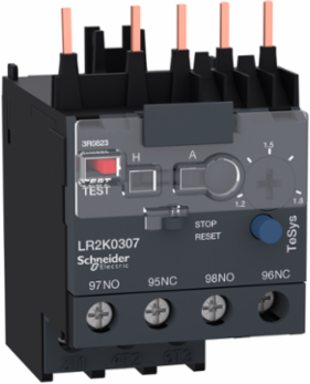

Schneider Electric LR2K0307 TeSys K Differential Thermal Overload Relay 1.2-1.8A Class 10A
- MPN: LR2K0307
- PPN: SCH-LR2K0307
CAD
$65.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
LR2K0307 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 0.55kW@400V thanks to a thermal range 1.2-1.8A, a tripping class 10A and phase unbalance protection. LR2K0307 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 1.2-1.8A, a tripping class 10A and phase unbalance detection, it protects motors 0.55kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K06 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064).
Features
- Equipped with an adjustable thermal setting dial, this relay provides a precise current adjustment range of 1.20 to 1.80 Amps. This localized adjustment wheel lets maintenance technicians fine-tune the trip threshold to match the exact nameplate FLA of small pumps, fans, or conveyor drives, eliminating nuisance tripping while ensuring strict compliance with Canadian Electrical Code overcurrent protection standards.
- This TeSys K differential thermal overload relay features integrated phase failure sensitivity that monitors current balance across all three phases. If a single-phasing event or a critical phase unbalance occurs, the internal mechanism trips rapidly to cut power to the control circuit, protecting your expensive 3-phase fractional-horsepower motors from catastrophic overheating and premature winding burnout.
- Designed for seamless, plug-and-play mechanical integration, this overload relay clips and bolts directly onto the bottom terminals of the TeSys K miniature contactor series (such as the LC1K or LP1K). This direct-mounting architecture eliminates the need for extra interconnecting wires, reduces labor times, and keeps your overall control assembly footprint remarkably compact on the DIN rail.
- This device comes factory-equipped with 1 NO (Normally Open) and 1 NC (Normally Closed) auxiliary contacts rated for standard industrial control circuits. The NC contact wires directly into your contactor coil loop to drop out power during a fault, while the NO contact simultaneously signals a local pilot light or routes a discrete digital input back to a supervisory PLC for immediate fault diagnosis.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Depth65 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 6 A gG for signalling circuit conforming to VDE 0660, 6 A gG for signalling circuit conforming to IEC 60947
- Flame Retardance
- V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
- Mounting Support
- under contactor, plate, with specific accessories, rail, with specific accessories
- Network Type
- AC, DC
- Tightening Torque
- 1.3 N.m screw clamp terminals Philips No 2, 1.3 N.m screw clamp terminals flat Ø 6 mm, 1.3 N.m screw clamp terminals pozidriv No 2
- [Ue] Rated Operational Voltage
- <= 690 V power circuit, <= 690 V power circuit<= 690 V power circuit, <= 690 V power circuit, 690 V AC AC-15 signalling circuit, 250 V DC DC-13 signalling circuit
- Connections - Terminals
- screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 2 0.34-1.5 mm²flexible with cable endscrew clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-2.5 mm²flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3570299549275095, 0.4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.8931643852450023
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2211018
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0702
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LR2K
- Fire Resistance
- 850 °C IEC 60695-2-1
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- differential thermal overload relay
- Range Of Product
- TeSys K thermal overload relays
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Thermal Protection Adjustment Range
- 1.2-1.8 A
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2211018EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential, In %
- 42
- Width Nominal
- 45 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Package Weight(Lbs)
- 157.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Control TypeRed push-button trip test function, Blue push-button stop and manual reset, selector switch manual or automatic reset
Mechanical Robustnessvibrations NC contact2 Gn, 5...300 Hz IEC 60068-2-6shocks NO contact10 Gn for 11 ms IEC 60068-2-27, shocks NC contact10 Gn for 11 ms IEC 60068-2-27, vibrations NO contact2 Gn, 5...300 Hz IEC 60068-2-6
Network Frequency<= 400 Hz, <= 400 Hz
Protective TreatmentTC IEC 60068, TC DIN 50016
Certificate AgencyUL, CSA, UKCA
[Ui] Rated Insulation Voltagepower circuit 690 V BS 4941, power circuit 690 V IEC 60947, power circuit 750 V VDE 0110 group C, power circuit 600 V CSA C22.2 No 14
Carbon Footprint Of The Distribution Phase [A4]0.017124164486850613, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.043940103606662645
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 kg CO2 eq., 4.986699999999999
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLR2K
Local Signallingtrip indicator Yellow)
Power Dissipation Per Pole2 W
Product NameTeSys LRK
RangeTeSys
Relay Applicationmotor protection
Software Versionv5.9.4
Thermal Overload Classclass 10A IEC 60947-4-1
Total Lifecycle Carbon Footprint6 kg CO2 eq.
R Thermal Protection Adj Range1.2-1.8 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh74.6352
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal58 mm
[Ith] Conventional Free Air Thermal Current6 A signalling circuit
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2211018
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -30-60 °C with derating IEC 60947, -30-60 °C with derating IEC 60947, -30-60 °C with derating IEC 60947-20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -30-60 °C with derating IEC 60947, -30-60 °C with derating IEC 60947
Product CompatibilityLC1K, LP1K, LP4K, LC7K
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint6.297958608266024
Environmental DisclosureENVPEP2211018EN
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2211018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
Range Of ProductTeSys K thermal overload relays
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
