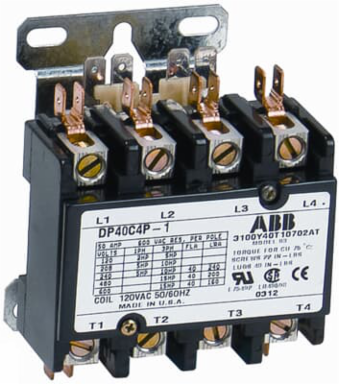

ABB DP40C4P-F DP40C4P-F Contactor
ABB DP40C4P-F DP40C4P-F Contactor
- MPN: DP40C4P-F
- UPC: 662019754352
- PPN: ABB-DP40C4P-F
- UNSPSC: 39121529
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$69.54/ EA
Description
DP40C4P-F DP contactor provide outstanding performance in various HVAC application and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
Specifications
Dimensions
- Product Net Width
- 57.8 mm
- Product Net Height
- 95.8 mm
Product Net Depth / Length77.3 mm
Product Net Weight0.57 kg
Technical
- Number of Main Contacts NO
- 4
- Rated Frequency (f)
- Control Circuit 50 HzControl Circuit 60 Hz
StandardsIEC 60947-4-1UL 508
Rated Control Supply Voltage (Us)24 V AC
Classifications
- Object Classification Code
- Q
eClassV11.1 : 27371003
Environmental
- Ambient Air Temperature
- Operation -40 ... +65 °C
RoHS StatusNo declaration needed
Technical UL/CSA
- Horsepower Rating UL/CSA
- (110 ... 120 V AC) Single Phase 3 Hp(208 V AC) Three Phase 10 Hp(220 ... 240 V AC) Single Phase 7.5 Hp(220 ... 240 V AC) Three Phase 10 Hp(440 ... 480 V AC) Three Phase 20 Hp(550 ... 600 V AC) Three Phase 25 Hp
- Full Load Amps Motor Use
- 40 A
Full Load Amps AC Resistance (Heating)(600 V AC) 50 A
Locked Rotor Amps(480 V AC) 200 A(600 V AC) 160 A
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85365080
