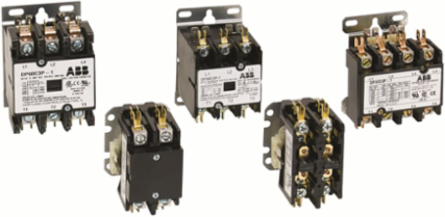

ABB DP75C3P-F DP75C3P-F contactor
- MPN: DP75C3P-F
- UPC: 804325593182
- PPN: ABB-DP75C3P-F
- UNSPSC: 39121529
CAD
$440.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DP75C3P-F DP contactor provide outstanding performance in various HVAC application and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
Specifications
Dimensions
- Product Net Width
- 88 mm
- Product Net Height
- 132.1 mm
Product Net Depth / Length130 mm
Product Net Weight1.5 kg
Technical
- Number of Main Contacts NO
- 3
- Rated Frequency (f)
- Control Circuit 50 HzControl Circuit 60 Hz
StandardsUL 508IEC 60947-4-1
Rated Control Supply Voltage (Us)24 V AC
Classifications
- Object Classification Code
- Q
eClassV11.1 : 27371003
Environmental
- Ambient Air Temperature
- Operation -40 ... +65 °C
RoHS StatusNo declaration needed
Technical UL/CSA
- Horsepower Rating UL/CSA
- (110 ... 120 V AC) Single Phase 5 Hp(208 V AC) Three Phase 20 Hp(220 ... 240 V AC) Single Phase 10 Hp(220 ... 240 V AC) Three Phase 25 Hp(440 ... 480 V AC) Three Phase 40 Hp(550 ... 600 V AC) Three Phase 40 Hp
- Full Load Amps Motor Use
- 75 A
Full Load Amps AC Resistance (Heating)(600 V AC) 90 A
Locked Rotor Amps(480 V AC) 375 A(600 V AC) 300 A
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85365080
