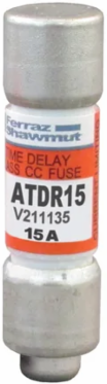

Mersen ATDR15 Amp-Trap 2000® 600V 15A Time-Delay Class CC Fuse, 1.5 Inch Length
- MPN: ATDR15
- UPC: 782001901103
- PPN: FER-ATDR15
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- The ATDR15 is a 15-Amp, 600V AC/300V DC Class CC time-delay fuse from Mersen’s Amp-Trap 2000® series. It features a unique "rejection" tip that prevents the installation of lower-rated or incorrect fuse classes into critical control circuits, ensuring that your equipment remains protected by the exact specifications required by the manufacturer.
- Designed with superior time-delay characteristics, the ATDR15 is specifically engineered to handle the high "inrush" currents associated with small motor starts and control transformer energization. It provides a "soft" response to temporary surges while offering ultra-fast "current-limiting" protection during actual short-circuit events, preventing catastrophic damage to sensitive downstream components.
- This fuse is highly current-limiting, meaning it can stop a massive electrical fault in less than half a cycle (<0.008 seconds). With an interrupting rating of 200,000 Amps RMS, it significantly reduces the "let-through" energy (I^2t) during a fault, which lowers the risk of arc flash and helps maintain a high Short Circuit Current Rating (SCCR) for your entire electrical panel.
- Constructed with a high-grade fiberglass body and silver-plated copper contact caps, the ATDR15 provides exceptional dimensional stability and electrical conductivity. This premium build ensures that the fuse will not become brittle or lose its calibration even when installed in compact, high-heat environments like localized motor control centers or crowded automation cabinets.
- The Mersen ATDR15 is UL Listed to Standard 248-4 (Class CC) and CSA Certified to Standard C22.2. Its high interrupting capacity and precise time-delay performance make it a primary choice for meeting NEC® and CEC® requirements for branch circuit protection in industrial machinery, HVAC systems, and commercial lighting panel
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupt Rating AC
- 200 kA
- Fuse Type
- Time Delay
- Fuse Length
- 1.5 in
- Connection Type
- Ferrule
- Weight
- 0.017 lb
- Connection/Terminal Material
- Tin-Plated Copper
Amperage15 A
Interrupt Rating DC100 kA
Fuse ClassClass CC
Frequency50/60 Hz
Mounting TypeClip
Body/Insulating MaterialGMG (Glass-Mat Gypsum)
