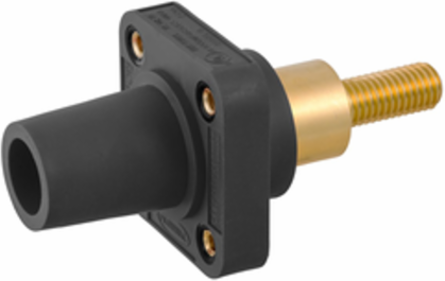

Bryant HBLFRSCEBK Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, SingleConductor, Extra Long Stud, Black
- MPN: HBLFRSCEBK
- UPC: 783585433875
- PPN: HBL-HBLFRSCEBK
- UNSPSC: 39121406
CAD
$131.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, SingleConductor, Extra Long Stud, Black
Features
- Industrial Grade
- Female Receptacle
- 300/400A 600V AC/DC
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 4.000 in
- Application
- High Ampacity Connections
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Phase
- Single Phase
- Type
- Receptacle
- Wattage
- 240000
- Connectivity
- Stud Type
- Nema Rating
- Non-NEMA
- Number Of Wires
- 1-Wire
- Description - Invoice
- SINGLEPOLE, 300/400A FEM EXTSTUD REC, BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 5.100x22.500x11.600 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585433875
- Case Weight
- 19.150 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating400 A
Amperage Rating400 A
ColorBlack
NEMA RatingNon-NEMA
Number of Wires1-Wire
Special FeaturesStandard
Voltage Rating600V AC, 250V DC Max kV
Wire Size#4 AWG to #4/0 AWG
Display SizeStandard Sized Product
Number Of Poles1-Pole
StyleStud Type, Threaded Hole Mounting, Female
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareThreaded Thru-Hole
MaterialElastomer / Elastomeric
Base Unit of MeasureEA
Carton - Gross Weight per Pack19 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
