TeSys Giga High Power Contactor 3 Pole 185A 100-250V AC/DC Coil
Schneider Electric

Schneider Electric LC1G185KUEN TeSys Giga High Power Contactor 3 Pole 185A 100-250V AC/DC Coil

  • MPN: LC1G185KUEN
  • PPN: SCH-LC1G185KUEN

CAD

$1951.25

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

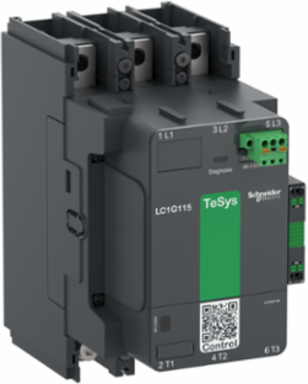

TeSys Giga High Power Contactor 3 Pole 185A 100-250V AC/DC Coil

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, China, Czechia, France
Depth193 mm

Physical Attributes

Color
dark grey

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Operating Rate
600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4
Maximum Motor Phase Current
185 A
Maximum Horse Power Rating50 hp at 200/208 V 60 Hz, 60 hp at 230/240 V 60 Hz, 125 hp at 460/480 V 60 Hz, 150 hp at 575/600 V 60 Hz
Irms Rated Making Capacity2310 A at 440 V
Rated Breaking Capacity1610 A at 440 V

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
200 A aM at <= 440 V for motor, 160 A aM at <= 690 V for motor, 315 A gG at <= 690 V, 300 A UL Type J at <= 600 V
Electrical Durability
300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V
Motor Power Kw
90 kW at 400 V AC 50/60 Hz (AC-3), 90 kW at 415 V AC 50/60 Hz (AC-3), 110 kW at 440 V AC 50/60 Hz (AC-3), 110 kW at 500 V AC 50/60 Hz (AC-3), 110 kW at 690 V AC 50/60 Hz (AC-3), 75 kW at 1000 V AC 50/60 Hz (AC-3), 90 kW at 400 V AC 50/60 Hz (AC-4), 90 kW at 415 V AC 50/60 Hz (AC-4), 110 kW at 500 V AC 50/60 Hz (AC-4), 110 kW at 690 V AC 50/60 Hz (AC-4), 75 kW at 1000 V AC 50/60 Hz (AC-4)55 kW at 230 V AC 50/60 Hz (AC-3e), 90 kW at 400 V AC 50/60 Hz (AC-3e), 90 kW at 415 V AC 50/60 Hz (AC-3e), 110 kW at 440 V AC 50/60 Hz (AC-3e), 110 kW at 500 V AC 50/60 Hz (AC-3e), 110 kW at 690 V AC 50/60 Hz (AC-3e), 75 kW at 1000 V AC 50/60 Hz (AC-3e), 55 kW at 230 V AC 50/60 Hz (AC-3), 55 kW at 230 V AC 50/60 Hz (AC-4), 100 kW at 440 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole
20 W AC-1 - Ith 305 A, 6 W AC-3 - Ith 185 A
Utilisation Category
AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8a, AC-8b, DC-1, DC-3, DC-5
[Icw] Rated Short-time Withstand Current
1.5 kA - 10 s, 0.92 kA - 30 s, 0.74 kA - 1 min, 0.5 kA - 3 min, 0.4 kA - 10 min
[Uc] Control Circuit Voltage
100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
Connections - Terminals
control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]
6.237541510598823, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
39 kg CO2 eq., 39.176010870068204
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Service Catalog Item
Finished good
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Average Impedance
0.00017 Ohm
Compatibility Code
LC1G
Device Short Name
LC1G
Inrush Power In W
380 W
Mounting Support
plate
Overvoltage Category
III
Product Availability
Stock - Normally stocked in distribution facility
Protective Treatment
TH
Range Of Product
TeSys Giga
Software Version
v6.2.4
Tightening Torque
18 N.m
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current
185 A
Pep Code
ENVPEP2105013EN
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential, In %
55
Width Nominal
108 mm
[Ui] Rated Insulation Voltage
1000 V
Hold-in Power Consumption In Va
12.4-12.4 VA
Rated Thermal Current (Ith)
305 A
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ie] Rated Operational Current305 A (at <40 °C) at <= 1000 V AC-1, 185 A (at <60 °C) at <= 440 V AC-3
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]7.10052399768008, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.058803294325296185
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]688 kg CO2 eq., 687.5048579469374
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch35 mm
Inrush Power In Va540-540 VA
Mechanical Durability8 Mcycles
Number Of Poles3P
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint740 kg CO2 eq.
Control Circuit Voltage100...250 V
Rated Thermal Current Hv305 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh832.2
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal193 mm
[Ith] Conventional Free Air Thermal Current305 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W7.8-7.8 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)4.584 kg
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Permissible Ambient Air Temperature Around The Device
-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance
Halogen free plastic parts product
Mercury Free
Yes
Circularity Profile
ENVEOLI2105013
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint740.0777376196097
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys Giga

ETIM

ETIM 8
EC000066
ETIM 9EC000066
