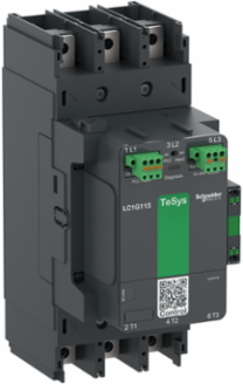

Schneider Electric LC1G225LSEA TeSys Giga High Power Contactor 225A, 3 Pole, 200-500V AC/DC Coil

MPN: LC1G225LSEA
PPN: SCH-LC1G225LSEA
UNSPSC: 39121529

$2709.26

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 225A 132kW@440V. It provides a 200-500V AC/DC wide band low consumption electronic coil, PLC output control and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection with cable memory kit and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 108mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.

Features

Featuring a digitally controlled wide-band electronic coil (200 500V AC/DC), this contactor consumes up to 80% less holding power than conventional blocks. This ultra-low inrush and holding consumption allows it to interface directly with PLC relay outputs without requiring interposing relays, keeping control panel temperatures low and lowering your overall energy footprint.
Engineered with a robust 225-amp AC-3 rating (and up to 315-amp AC-1), this 3-pole TeSys G contactor safely controls high-horsepower motors up to 110 kW at 400V. It easily manages the intense inrush currents of industrial pumps, heavy ventilation fans, and massive compressors, protecting your system from premature contact welding during grueling startup cycles.
Designed with a highly optimized, space-saving frame footprint, this unit significantly reduces required enclosure depth and width compared to legacy heavy-amperage contactors. Its compact, uniform profile allows industrial panel builders to maximize DIN rail density and pack more power distribution into smaller, more cost-effective electrical cabinets.
Fully certified to IEC/EN 60947-4-1, UL 60947-4-1, and CSA standards, this contactor complies with strict global energy and safety rules. Outfitted with standard IP20 finger-safe terminal shields and high-performance arc chutes, it guarantees reliable arc suppression and personal shock protection in high-voltage industrial facilities.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia
Depth	193 mm

Weight	5114.7 g

Physical Attributes

Color	dark grey

Complementary Attributes

Maximum Horse Power Rating	60 hp at 200/208 V 60 Hz75 hp at 230/240 V 60 Hz150 hp at 460/480 V 60 Hz, 150 hp at 575/600 V 60 Hz
Uc Control Circuit Voltage	200...500 V, 200...500 V AC 50/60 Hz, 200...500 V DC
Control Circuit Voltage Limits	operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Rated Breaking Capacity	2050 A at 440 V
Ie Rated Operational Current	330 A (at <40 °C) at <= 1000 V AC-1225 A (at <60 °C) at <= 440 V AC-3
Uimp Rated Impulse Withstand Voltage	8 kV

Maximum Operating Rate	600 cyc/h AC-3, 600 cyc/h AC-3e300 cyc/h AC-1150 cyc/h AC-4
Ue Rated Operational Voltage	<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Maximum Motor Phase Current	225 A
Icw Rated Short Time Withstand Current	1.8 kA - 10 s1.0 kA - 30 s0.85 kA - 1 min0.56 kA - 3 min0.44 kA - 10 min
Ui Rated Insulation Voltage	1000 V

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contactor Application	power switching, motor control
Mechanical Robustness	vibrations 5-300 Hz 2 gn contactor openvibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole	20 W AC-1 - Ith 330 A, 8 W AC-3 - Ith 225 A
Connections Terminals	control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Carbon Footprint Of The Distribution Phase A4	7.8698615491655595, 8 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.06517459628699426
Carbon Footprint Of The Use Phase B2 B3 B4 B6	868 kg CO2 eq., 868.4271889856052
Local Publishable Date	2026-09-08
Device Type	LV equipment - LV contactor
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	250 A aM at <= 440 V for motor200 A aM at <= 690 V for motor400 A gG at <= 690 V400 A UL Type J at <= 600 V
Coil Technology	built-in bidirectional peak limiting
Connection Pitch	35 mm
Inrush Power In Va	295-295 VA
Mechanical Durability	8 Mcycles
Number Of Modules Per Plc Per Pc	1
Operating Time	40...70 ms closing15...50 ms opening
Pole Contact Composition	3 NO
Product Or Component Type	contactor
Range	TeSys
Returnability	Yes
Software Version	v6.2.4
Tightening Torque	18 N.m
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current	225 A
Database Version	2024-01
Height Nominal	255 mm
Nbr. Of Units In Pkg.	1
Hold In Power Consumption In Va	13.0-13.0 VA
Rated Thermal Current Ith	330 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	55

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Electrical Durability	300 cycles AC-1 400 V500 cycles AC-3 400 V, 500 cycles AC-3e 400 V150 cycles AC-4 400 V
Motor Power Kw	110 kW at 400 V AC 50/60 Hz (AC-3), 110 kW at 415 V AC 50/60 Hz (AC-3), 132 kW at 440 V AC 50/60 Hz (AC-3), 132 kW at 500 V AC 50/60 Hz (AC-3), 160 kW at 690 V AC 50/60 Hz (AC-3), 132 kW at 1000 V AC 50/60 Hz (AC-3)110 kW at 400 V AC 50/60 Hz (AC-4), 110 kW at 415 V AC 50/60 Hz (AC-4)132 kW at 500 V AC 50/60 Hz (AC-4), 132 kW at 690 V AC 50/60 Hz (AC-4), 110 kW at 1000 V AC 50/60 Hz (AC-4)55 kW at 230 V AC 50/60 Hz (AC-3e)110 kW at 400 V AC 50/60 Hz (AC-3e), 110 kW at 415 V AC 50/60 Hz (AC-3e)132 kW at 440 V AC 50/60 Hz (AC-3e), 132 kW at 500 V AC 50/60 Hz (AC-3e)160 kW at 690 V AC 50/60 Hz (AC-3e), 132 kW at 1000 V AC 50/60 Hz (AC-3e), 55 kW at 230 V AC 50/60 Hz (AC-3), 55 kW at 230 V AC 50/60 Hz (AC-4), 129 kW at 440 V AC 50/60 Hz (AC-4)
Utilisation Category	AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5
Certificate Agency	CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
Carbon Footprint Of The End Of Life Phase C1 To C4	6.913375422944028, 7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	43 kg CO2 eq., 43.420708344450965
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2105013
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2121
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	0.00015 Ohm
Compatibility Code	LC1G
Device Short Name	LC1G
Inrush Power In W	215 W
Mounting Support	plate
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Range Of Product	TeSys Giga
Safety Reliability Level	B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	927 kg CO2 eq.
Control Circuit Voltage	200...500 V
Rated Thermal Current Hv	330 A
Data Source	extrapolated product
Width Nominal	108 mm
Customs Code	8536490065
Hold In Power Consumption In W	8.0-8.0 W
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1051.2

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Circularity Profile	ENVEOLI2105013
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-19
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Ip Degree Of Protection	IP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	926.6963088984527
Environmental Disclosure	ENVPEP2105013EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2105013EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
