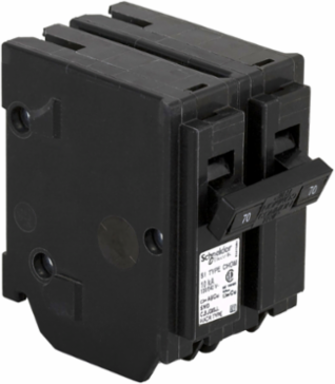

Schneider Electric CHOM270 Homeline Miniature Circuit Breaker, 70A, 2 Pole, 120/240V AC, 10kA AIR
- MPN: CHOM270
- UPC: 785901648093
- PPN: SCH-CHOM270
CAD
$140.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. CHOM Homeline miniature circuit breakers are CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Circuit Breaker Type | standard |
| Range Of Product | Homeline |
| Electrical Connection | screw clamp terminals |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | plug-on |
|---|---|
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| [In] Rated Current | 70 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
Complementary
| Number Of Spaces Required | 2 |
|---|
| Awg Gauge | AWG 8...AWG 2 aluminum/copper |
|---|
Environment
| Product Certifications | CSA |
|---|
| Ambient Air Temperature For Operation | 40 °C |
|---|
Offer Sustainability
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
