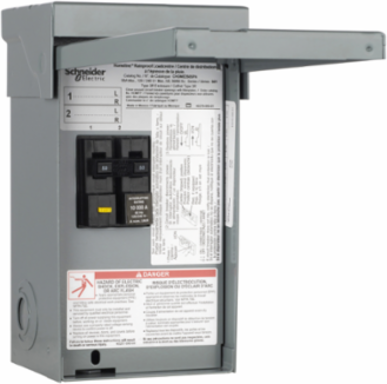

Schneider Electric CHOME250SPA Homeline Enclosed Circuit Breaker, 2 Pole, 50A, NEMA 3R, CSA Certified
- MPN: CHOME250SPA
- UPC: 785901830740
- PPN: SCH-CHOME250SPA
CAD
$248.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole GFCI circuit breaker that is rated at 5A 12/24 VAC single phase. Homeline load center provides a 1 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.1 inches. CHOM Homeline load centers are CSA certified. 15 A-[Ue] rated operational voltage {"1" 2018-04-13 05:11:03,"2" 2018-04-13 05:11:03,"3" 2018-04-13 05:11:03}-mounting mode plug-in-poles description 1P-Range Presentation
Features
- Housed in a painted, zinc-coated steel NEMA 3R rainproof enclosure, this spa pack is specifically engineered to withstand harsh Canadian weather conditions. The rugged metal casing prevents water infiltration and features a top-hinged cover that can be padlocked, safeguarding your electrical connections from unauthorized tampering, children, and localized moisture buildup next to your pool or patio.
- Boasting a 10 kA short-circuit current interrupting rating, this main lug subpanel effectively stops high-energy electrical faults before they can damage your home's primary electrical grid. It safely manages overcurrent conditions caused by pump motor failures or wiring issues, providing reliable secondary line protection that ensures peace of mind during heavy equipment operation.
- Measuring just 9.37 inches high by 4.88 inches wide, the ultra-compact, single-phase chassis mounts easily onto exterior walls, support posts, or privacy skirts. This small profile allows residential contractors and DIY homeowners to minimize visible conduit runs, streamline the final hookup process, and achieve a clean, professional finish that complies fully with CSA safety standards.
- Factory-installed with a heavy-duty, two-pole 50-Amp Square D™ Homeline™ circuit breaker, this unit delivers dedicated overcurrent and short-circuit protection for heavy 120/240V residential loads. It is engineered to seamlessly manage the demanding startup surges of modern electric vehicle charging stations, hot tub heaters, and central air conditioning compressors, preventing nuisance tripping while protecting your home's electrical infrastructure.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 50 A
- Voltage Rating
- 120/240 V AC
- Circuit Breaker Application
- HACR rated
- Height
- 9.37 in
- Depth
- 4.1 in
- Mounting Mode
- Plug-in
- Enclosure Rating
- NEMA 3R outdoor
- Product Certifications
- CSA
- RoHS Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1403002
- Mercury Free
- Yes
Poles2P
Interrupt Rating10 kA
Number of Spaces Required1
Width4.88 in
Wire Range8 AWG to 6 AWG copper or aluminum
Electrical ConnectionScrew clamp terminals
Product Or Component TypeEnclosed circuit breaker
Eu Rohs DirectiveCompliant
China RoHS RegulationPro-active declaration (out of China RoHS scope)
Reach RegulationContains SVHC above threshold
Toxic Heavy Metal FreeYes
