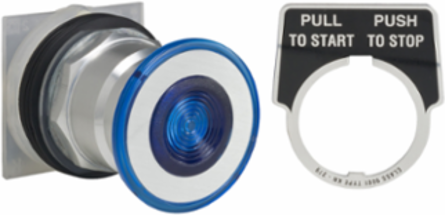

Square D 9001KR8P35LH25 Illuminated Push Button, Mushroom 41mm, 30mm, 24V, NEMA Rated
Square D 9001KR8P35LH25 Illuminated Push Button, Mushroom 41mm, 30mm, 24V, NEMA Rated
- MPN: 9001KR8P35LH25
- UPC: 785901811923
- PPN: SCH-9001KR8P35LH25
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$328.97/ EA
Description
This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This illuminated pushbutton has a round shaped head with mushroom operated profile and blue LED." "It operates with momentary push/pull actuation." "It has 1 NO and 1 NC contact with a rated voltage of 600V AC and rated operating current of 10A, AC-15 and 10A, DC-13." "It is a NEMA 1/2/3/3R/4/6/12/13 rated product." "This type K pushbutton is fitted with chromium plated metal bezel and plastic full guard." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- [Us] Rated Supply Voltage
- 24...28 V
- Bezel Material
- metal
- Contact Operation
- late-break
- Light Source
- incandescent bulb
- Mounting Diameter
- 30 mm
- Operator Profile
- mushroom Ø 41 mm
- Cap/Operator Or Lens Colour
- blue
- Bulb Base
- BA 9s
Contacts Type And Composition1 NC late break + 1 NC
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Operator Position Information3 positions
Light Block Supplywithout supply
Light Block Supplyfull voltage
Type Of Operatorpull : spring return, center : stay put, push : spring return
Size30 mm
Device Presentationcomplete product
Specifications
- Operator Additional Information
- screw-on plastic
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
Device Short NameK
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || CE || CSA LR 25490 class 3211 03 || NEMA
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
