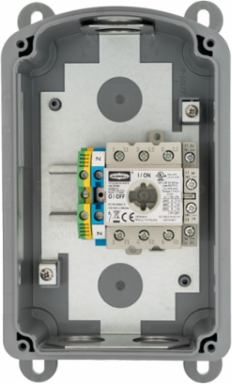

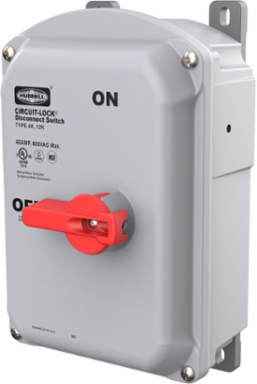

Hubbell Wiring Device-Kellems HBLDS100TAC Industrial Grade Motor Disconnect Switch, 100A 600V AC, IP69k, NEMA Type 4X, 3 Pole
- MPN: HBLDS100TAC
- UPC: 783585763774
- PPN: HBL-HBLDS100TAC
- UNSPSC: 39122205
CAD
$1383.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 100A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure has a single flat for top feed applications and supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Factory installed HBLAC1 auxiliary contact is "Break After Main Break", 1 set of N/O contacts, 1 set of N/C contacts
Specifications
Additional
- Amperage
- 100A
- Horsepower Maximum
- 50
- Dielectric Strength
- 3000V AC minimum
- Pole
- 3
- Width
- 8.700 in
- Wire Size
- #2 to #10 AWG
- Material - Mounting Hardware
- Stainless Steel Screw Mounting
- Enclosure Material
- UV stabilized non-metallic
- Industry Standard(s)
- cULus Listed
- Flammability Rating
- UL94-5VA and V0
- Country of Origin
- PL
- Style
- Heavy Duty
- Environmental Conditions
- Indoor and Outdoor
Voltage600V AC
Operating Cycles10,000 cycles minimum
Operating Temperature-40 C to 75 C without impact
Height5.94 in
Weight3.363 lb
Mounting MethodExternal fully adjustable feet
EnclosureIP69k, UL Type 4X, 12
ColorGray
CertificationscULus Listed, NSF, CE, UL 508, UL 60947-4-1A
Auxiliary ContactAC1, 1 N/O, 1 N/C
ShapeRounded Top
TypeDisconnect Switches
