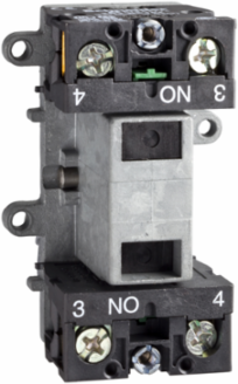

Schneider Electric XENG3791 Harmony XAC Double Contact Latching Contact Block 1NO + 1NC Single Speed
- MPN: XENG3791
- PPN: SCH-XENG3791
CAD
$69.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Harmony XAC Double Contact Latching Contact Block from Schneider Electric is a reliable component designed for automation and control applications. Featuring a versatile configuration of one normally open (NO) and one normally closed (NC) contact, this block facilitates effective switching and control in various systems. Its robust design ensures durability and operational efficiency, making it an essential choice for professionals seeking dependable pilot devices in their projects. With its innovative latching mechanism, this contact block offers enhanced performance and reliability, whether used in industrial settings or complex automated environments.
Documentation & Downloads
Specifications
Additional
- Rated Operational Power
- 40 W DC-13 120 V, 48 W DC-13 48 V, 65 W DC-13 24 V
- Contact Type and Composition
- 1 NO + 1 NC
- Contact Block Application
- Single speed
- Operating Force
- 13 N
- Rated Insulation Voltage
- 600 V IEC 60947-1
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Contact Operation
- Slow-break
- Terminals Description
- ISO n°01 (13-14) NO, ISO n°02 (11-12) NC
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature for Operation
- -25 to 70 °C
- Connections - Terminals
- Screw clamp terminals, 1 x 0.5–1 x 2.5 mm² without cable end, 1 x 0.5–2 x 1.5 mm² with cable end
- Country of Origin
- France
Conventional Enclosed Thermal Current10 A
Contact Block TypeDouble
Electrical Circuit TypeControl circuit
Mechanical Durability1,000,000 cycles
Rated Impulse Withstand Voltage6 kV IEC 60947-1
Maximum Resistance Across Terminals25 MOhm
MountingFront mounting
Vibration Resistance15 gn (10–500 Hz) IEC 60068-2-6
Overvoltage CategoryClass II IEC 61140
Ambient Air Temperature for Storage-40 to 70 °C
StandardsUL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
RoHS CompliancePro-active compliance (out of EU RoHS scope)
