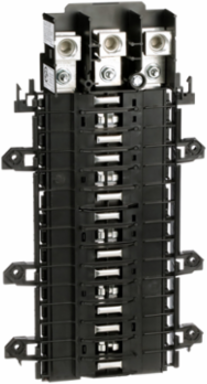

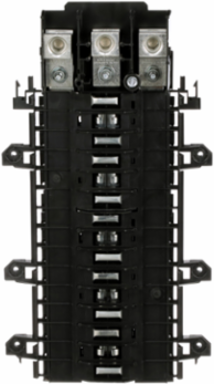

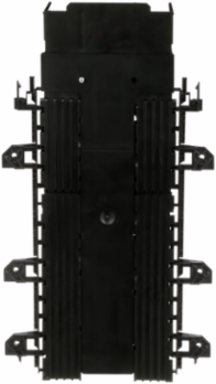

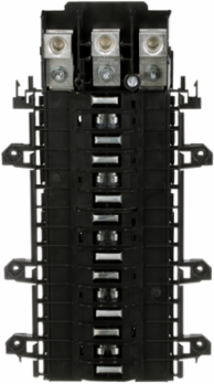

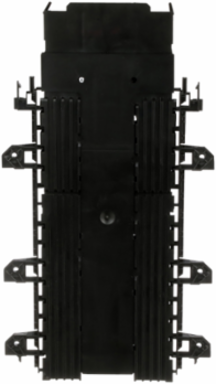

Schneider Electric QON330L200 QO Mounting Base for Load Center, 3 Phase, 30 Spaces, 200A
- MPN: QON330L200
- UPC: 785901868279
- PPN: SCH-QON330L200
CAD
$860.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QON OEM mounting bases are for the mounting of plug on QO, QO GFI, QO AFI and QO EPD circuit breakers. These OEM mounting bases are available in single and three phase versions. This QON OEM mounting base is for a main lugs of 200 A at 240 VAC single phase. This mounting base has 30 spaces. The main breaker will accept 4 AWG to 2/0 AWG copper or aluminum wire. The QON mounting base is UL component recognized. The QON mounting base is UL component recognized.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

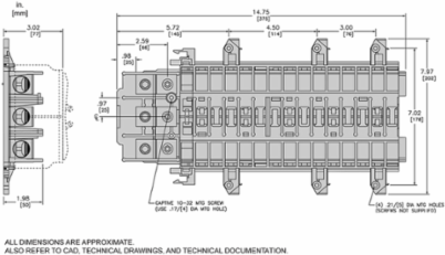

Depth77 mm
Complementary Attributes
- Line Rated Current
- 200 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Certificate Agency
- CSA, UL Recognized
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Type
- QO
- Energy Efficiency Optimized
- False
- Mounting Mode
- plug-on
- Number Of Spaces
- 30
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2212001EN
- Width Nominal
- 202 mm
- Short-circuit Current
- 10 kA
- Package Weight(Lbs)
- 1.769 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg Gauge4 AWG...300 kcmil aluminium/copper
Device Compositiongrounding bar (ordered separately)
Load Center Typemain lugs
Number Of Circuits30

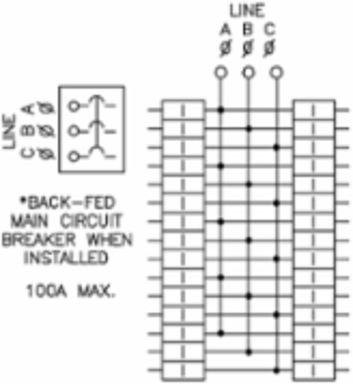

Phase3 phase 3 wires
Product Or Component Typemounting base
ReturnabilityYes
Tightening Torquemain lugs 250 lb.in, 4 AWG...300 kcmil, aluminium/copper
Height Nominal375 mm
[Ue] Rated Operational Voltage120/240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538100000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2212001EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212001EN
General Attributes
- Phase
- 3 phase 3 wires
- Range Of Product
- QO
Product Or Component Typemounting base
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
