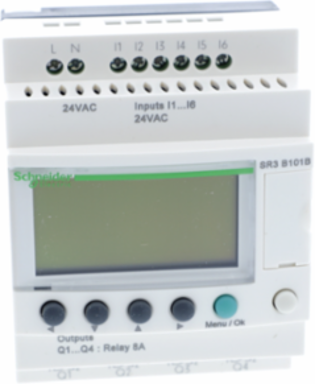

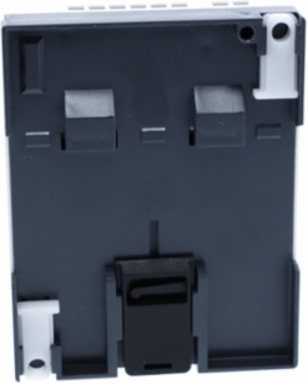

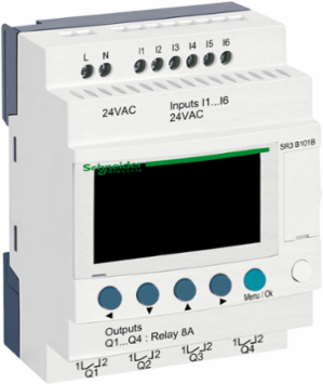

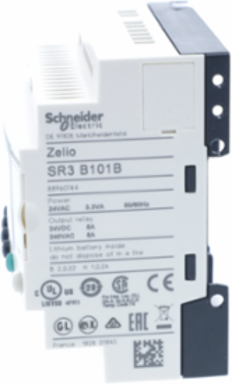

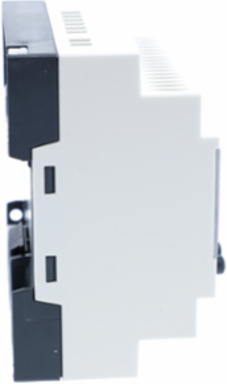

Telemecanique Sensors SR3B101B Zelio Logic Modular Smart Relay 10 I/O 24V AC IP20/IP40 0.25 kg
Telemecanique Sensors SR3B101B Zelio Logic Modular Smart Relay 10 I/O 24V AC IP20/IP40 0.25 kg
- MPN: SR3B101B
- PPN: SCH-SR3B101B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$266.97/ EA
Description
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 4 relay outputs with normally opened contact and 6 discrete inputs. It is a smart relay with a rated supply voltage of 24V, a maximum supply current of 160mA (without extension) and a power consumption of 4VA without extension. It is an IP20 and IP40 rated product. It weighs 0.25kg. This product meets EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-11, EN/IEC 61000-4-3 and EN/IEC 60068-2-27 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Specifications
Environment
- Product Certifications
- GL || UL || C-Tick || CSA || GOST
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Immunity To Microbreaks
- 10 ms repeated 20 times
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -40-70 °C
- Maximum Altitude Transport
- 3048 m
StandardsIEC 61000-4-2 level 3 || IEC 61000-4-5 || IEC 61000-4-12 || IEC 61000-4-4 level 3 || IEC 60068-2-6 Fc || IEC 61000-4-6 level 3 || IEC 61000-4-11 || IEC 61000-4-3 || IEC 60068-2-27 Ea
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Frequency
- 57...63 Hz || 47...53 Hz
- Output Thermal Current
- 8 A for all 4 outputs relay output
- Number Or Control Scheme Lines
- 0-500 FBD || 0-240 ladder
- Clock Drift
- 12 min/year 0-55 °C || 6 s/month 25-25 °C
- Discrete Input Current
- 4.4 mA
- Response Time
- 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
- Local Display
- with
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
- Output Voltage Limits
- 5...30 V DC relay output) || 24...250 V AC
- Connections - Terminals
- screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Current State 0 Guaranteed
- <= 0.5 mA discrete input)
- Overvoltage Category
- III IEC 60664-1
- Maximum Supply Current
- 160 mA without extension) || 280 mA with extensions)
- Isolation Voltage
- 1780 V
- Protection Type
- against inversion of terminals (control instructions not executed)
- Discrete Input Number
- 6
- Supply Frequency
- 50/60 Hz
- Checks
- program memory on each power up
Input Impedance4.6 kOhm discrete input
Number Of Outputs4 relay
Discrete Input Voltage24 V AC
Backup Time10 years 25 °C
Power Consumption In Va4 VA without extension || 7.5 VA with extensions
Current State 1 Guaranteed>= 2 mA discrete input)
Clockwith
Net Weight0.25 kg
Voltage State 0 Guaranteed<= 5 V discrete input
Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Voltage State 1 Guaranteed>= 14 V discrete input
Supply Voltage Limits20.4-28.8 V
Mechanical Durability10000000 cycles relay output
Tightening Torque0.5 N.m
Switching Capacity In Ma>= 10 mA 12 V relay output)
Operating Rate In Hz0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Cycle Time6-90 ms
[Us] Rated Supply Voltage24 V
Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typemodular smart relay
