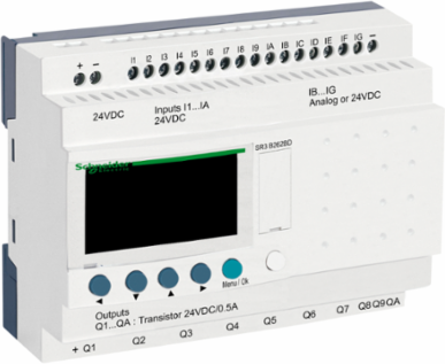

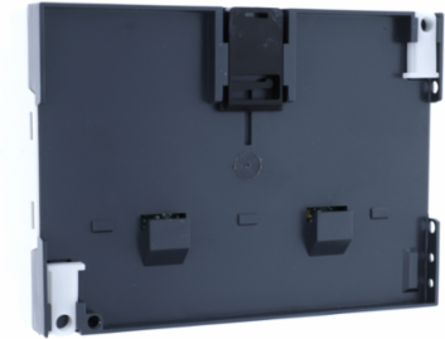

Telemecanique Sensors SR3B262BD Zelio Logic Modular Smart Relay, 26 I/O, 24V DC, 10 Transistor Outputs
- MPN: SR3B262BD
- PPN: SCH-SR3B262BD
CAD
$446.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typemodular smart relay
Complementary
- Output Voltage
- 24 V transistor output
- Discrete Input Type
- resistive
- Analogue Input Range
- 0...24 V || 0...10 V
- Discrete Input Voltage
- 24 V DC
- Lsb Value
- 39 mV analogue input circuit
- Clock Drift
- 12 min/year 0-55 °C || 6 s/month 25-25 °C
- Overload Protection
- with transistor output
- Current State 1 Guaranteed
- >= 1.2 mA IB...IG used as discrete input circuit) || >= 2.2 mA I1...IA and IH...IR discrete input circuit)
- Clock
- with
- Power Dissipation In W
- 10 W with extensions || 5 W without extension
- Net Weight
- 0.3 kg
- Voltage State 0 Guaranteed
- <= 5 V I1...IA and IH...IR discrete input circuit || <= 5 V IB...IG used as discrete input circuit
- Conversion Time
- smart relay cycle time analogue input circuit
- Analogue Input Number
- 6
- Input Compatibility
- 3-wire proximity sensors PNP discrete input
- Supply Voltage Limits
- 19.2-30 V
- Operating Distance
- 10 m between stations, with screened cable (sensor not isolated) analogue input circuit
- Maximum Supply Current
- 180 mA with extensions) || 70 mA without extension)
- Temperature Probe Type
- NTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500
- Analogue Input Resolution
- 8 bits
- [Ures] Residual Voltage
- 2 V at state 1 transistor output
- Cycle Time
- 6-90 ms
- Maximum Permissible Voltage
- 30 V analogue input circuit
- [Us] Rated Supply Voltage
- 24 V
Input Impedance12 kOhm IB...IG used as analogue input circuit || 12 kOhm IB...IG used as discrete input circuit || 7.4 kOhm I1...IA and IH...IR discrete input circuit
Number Of Outputs10 transistor
Conversion Error+/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
Number Or Control Scheme Lines0-500 FBD || 0-240 ladder
Backup Time10 years 25 °C
Analogue Input Typecommon mode
Discrete Input Current4 mA
Response Time<= 1 ms from state 0 to state 1)transistor output || <= 1 ms from state 1 to state 0)transistor output
Overvoltage Protectionwith transistor output
Local Displaywith
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Output Voltage Limits19.2...30 V DC transistor output)
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Voltage State 1 Guaranteed>= 15 V I1...IA and IH...IR discrete input circuit || >= 15 V IB...IG used as discrete input circuit
Current State 0 Guaranteed<= 0.5 mA IB...IG used as discrete input circuit) || <= 0.75 mA I1...IA and IH...IR discrete input circuit)
Short-Circuit Protectionwith transistor output
Overvoltage CategoryIII IEC 60664-1
Tightening Torque0.5 N.m
Load Current0.5-0.625 A transistor output
Counting Frequency1 kHz discrete input
Discrete Input Number16 IEC 61131-2 Type 1
Reverse Polarity Protectionwith
Repeat Accuracy+/- 2 % 55 °C analogue input circuit
Checksprogram memory on each power up
Environment
- Product Certifications
- C-Tick || GOST || UL || CSA || GL
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Immunity To Microbreaks
- 1 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -40-70 °C
- Maximum Altitude Transport
- 3048 m
StandardsIEC 60068-2-27 Ea || IEC 61000-4-5 || IEC 61000-4-11 || IEC 61000-4-6 level 3 || IEC 61000-4-12 || IEC 61000-4-4 level 3 || IEC 61000-4-3 || IEC 61000-4-2 level 3 || IEC 60068-2-6 Fc
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
