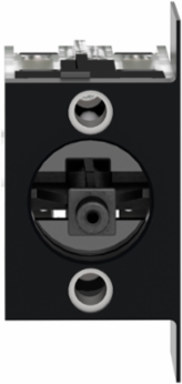

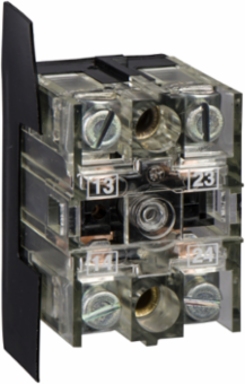

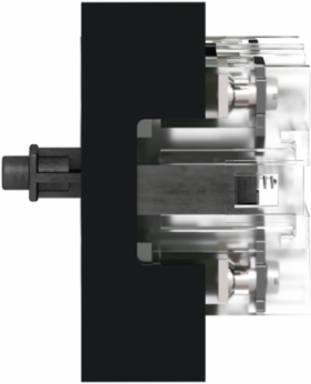

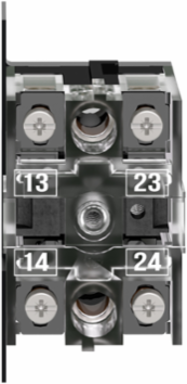

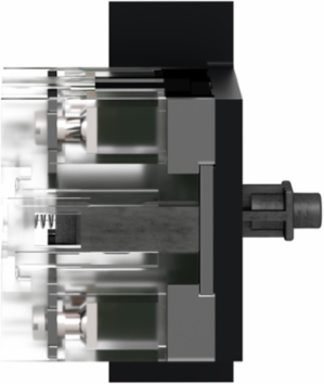

Schneider Electric XENB1181 Harmony XAC Single Contact Block, 2 Speed, Spring Return, 2NO
- MPN: XENB1181
- PPN: SCH-XENB1181
CAD
$63.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections
Documentation & Downloads
Specifications
Key Specifications
- Mounting Of Block
- front mounting
- Contact Block Type
- single
- Contact Block Application
- 2-speed
- Contacts Type And Composition
- 2 NO
- Mechanical Interlocking
- without mechanical interlock
- Electrical Circuit Type
- control circuit
Range Of ProductHarmony XAC
Product Or Component Typecontact block
Component NameXENB
Contact Operationstaggered || slow-break
Type Of Operatorspring return
Product CompatibilityXACB || XACM
Complementary
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Maximum Resistance Across Terminals
- 25 MOhm
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 400 V 3)IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Rated Operational Power In W
- 31 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 35 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Terminals Description Iso N°1(33-34)NO || (43-44)NO_CL
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.05 kg
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Rated Operational Power In Va140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 210 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 640 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 680 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive
Contact Code DesignationA300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsIEC 60947-5-1 || CSA C22.2 No 14
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
