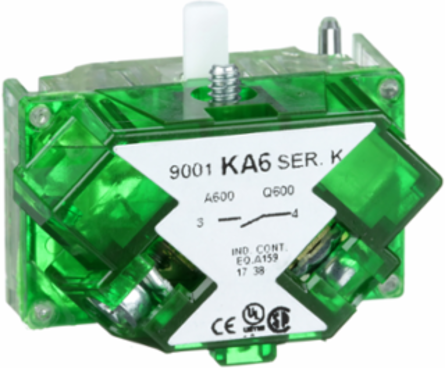

Square D 9001KA6 Harmony 9001K Contact Block, 1 NO, 0-600V, Silver Alloy, IP20
- MPN: 9001KA6
- UPC: 785901849773
- PPN: SCH-9001KA6
CAD
$27.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features early-break contact operation. Its protection index is IP20, protecting operators from unexpected contact with live circuits. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K || Harmony 9001SK
- Device Short Name
- 9001K
Product Or Component Typecontact block
Complementary
- [Us] Rated Supply Voltage
- 0...600 V
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
- Connections - Terminals
- screw-clamp terminals
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Contacts Material
- silver alloy contacts
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Shape Of Screw Head
- cross slotted
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Contacts Type And Composition1 NO
Terminals Description Iso N°1(1-2)NC_CL
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Contact Operationearly make
Positive Openingwithout
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Net Weight0.023 kg
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
StandardsJIS C 852 || EN/IEC 60947-5-1 || UL 508 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
