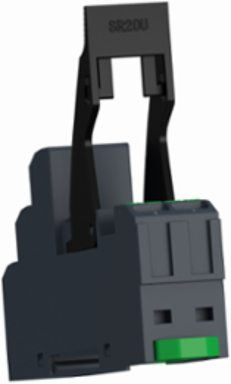

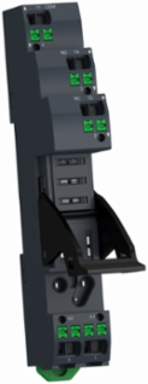

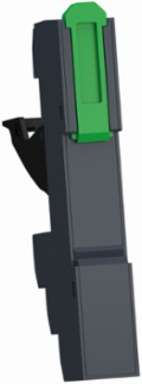

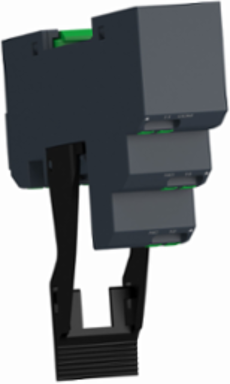

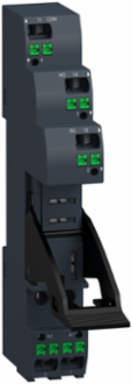

Schneider Electric RGZE05P Push In Socket for RXG1 Relays, 10A, 250V, 98mm Length, IP20
- MPN: RGZE05P
- PPN: SCH-RGZE05P
CAD
$12.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Push In Socket for RXG1 Relays, 10A, 250V, 98mm Length, IP20
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Product Or Component Type
- socket
- Product Compatibility
- plug-in relay RXG 1 C/O
[Ui] Rated Insulation Voltage250 V
Contacts Type And Composition1 C/O
Device Short NameRGZ
Complementary
- Height
- 67 mm
- Pollution Degree
- 3
- Length
- 98 mm
- Net Weight
- 0.039 kg
- Connections - Terminals
- spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
- Width
- 16 mm
- Overvoltage Category
- III
[Ue] Rated Operational Voltage250 V IEC || 300 V UL
Shape Of Pinflat
Contact Terminal Arrangementseparate
Fixing Modeclip-on (35 mm symmetrical DIN rail)
Dielectric Strength5 kV between coil and contact with reinforced insulation || 3 kV between terminals and DIN rail with basic insulation
[Uimp] Rated Impulse Withstand Voltage6 kV between coil and contact with reinforced insulation || 4 kV between terminals and DIN rail with basic insulation
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || UL || EAC || DNV-GL
- Standards
- IEC 61984
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-40-70 °C
MarkingCE
Ip Degree Of ProtectionIP20
