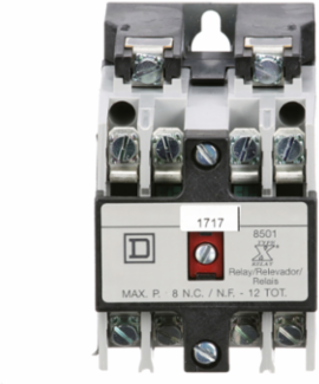

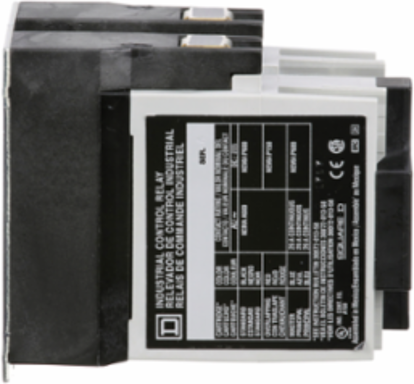

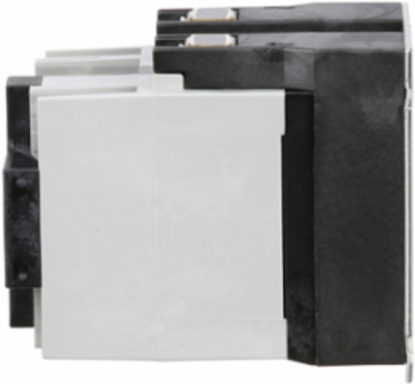

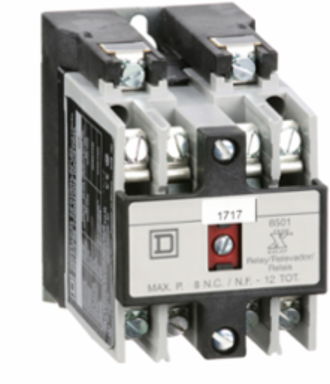

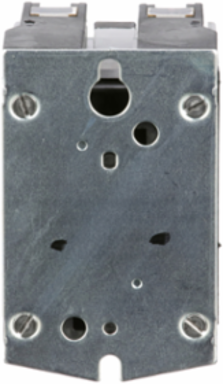

Square D 8501XO20V03 NEMA Control Relay, 10A, 220/240V AC Coil, 2 NO Contacts, Mercury Free
- MPN: 8501XO20V03
- UPC: 785901536987
- PPN: SCH-8501XO20V03
CAD
$185.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience reliable automation control with the Schneider Electric NEMA Control Relay, designed to handle 10A resistive loads at 600 VAC. Featuring two normally open contacts, this robust relay provides both stability and versatility in various control applications. Ideal for industrial settings, it ensures efficient operation and dependable performance, making it an essential component for effective automation and control systems. Whether you’re looking to enhance your existing setup or build a new control scheme, this relay exemplifies quality and reliability.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 10 A AC, 5 A DC
- Control Circuit Voltage Limits
- 0.85 to 1.1 Uc AC 50/60 Hz
- Rated Short-Circuit Making Capacity
- 60 A 120 V AC inductive, 30 A 240 V AC inductive, 15 A 480 V AC inductive, 12 A 600 V AC inductive, 10 A ≤ 600 V AC resistive, 1.1 A 125 V DC inductive, 0.55 A 250 V DC inductive, 0.2 A 301-600 V DC inductive, 4 A 125 V DC inductive, 0.8 A 250 V DC resistive
- Hold-in Power Consumption
- 23 VA 60 Hz, 25 VA 50 Hz
- Contact Configuration
- 2 Normally Open (NO)
- AWG Gauge
- AWG 18 to AWG 12 copper
- Mounting Type
- Panel
- Operating Temperature
- -40 to 160 °F (-40 to 71 °C)
- RoHS Compliance
- Pro-active compliance
- Country of Origin
- Mexico
Coil Voltage220 V AC 50 Hz, 240 V AC 60 Hz
Rated Breaking Capacity6 A 120 V AC inductive, 3 A 240 V AC inductive, 1.5 A 480 V AC inductive, 1.2 A 600 V AC inductive, 10 A ≤ 600 V AC resistive, 1.1 A 125 V DC inductive, 0.55 A 250 V DC inductive, 0.2 A 301-600 V DC inductive, 4 A 125 V DC resistive, 0.8 A 250 V DC resistive
Inrush Power148 VA 60 Hz, 143 VA 50 Hz
Operating Time15 ms pick-up, 16 ms drop-out
Electrical ConnectionScrew clamp terminals
Tightening Torque1.02 to 1.36 N.m (control circuit)
DimensionsHeight 3.5 in (88.90 mm), Width 2.23 in (56.64 mm), Depth 3.95 in (100.33 mm)
CertificationsCSA, UL Listed
Mercury FreeYes
