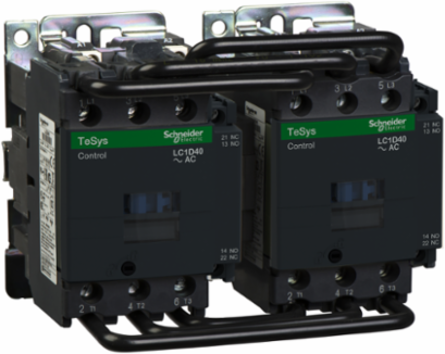

Schneider Electric LC2D40F7 TeSys Deca Reversing Contactor 3P AC-3 40A 110V AC
- MPN: LC2D40F7
- PPN: SCH-LC2D40F7
- UNSPSC: 39121529
CAD
$1002.35
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric LC2D40F7 TeSys Deca Reversing Contactor is engineered for robust control in industrial applications, featuring a three-pole design suitable for AC-3 load types up to 40A. This reliable reversing contactor operates at 110V AC, making it ideal for various motor control tasks, including reversing motor direction. Its durable construction ensures consistent performance, offering excellent thermal and electrical longevity. With the TeSys Deca series reputation for quality and efficiency, this contactor is a crucial component for optimizing machine and motor operations in demanding environments.
Features
- Re-assamble kits of reversing contactors
- New modern look & feel of all machines
- Designed to meet the requirements of Electro domestic and HVAC applications
- Easier to install and operate with multi-standard screws
- With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
- Compatible for all the voltages on the market
Documentation & Downloads
Specifications
Additional
| Rated Operational Voltage | <= 1000 V AC 25...400 Hz power circuit |
|---|---|
| Motor Power | 18.5 kW at 380-400 V AC 50 Hz, 10 hp at 200/208 V AC 60 Hz (3 phase motors) |
| Rated Insulation Voltage | 600 V CSA and UL, 1000 V IEC 60947-4-1 power circuit |
| Irms Rated Making Capacity | 140 A AC, 250 A DC signalling circuit; 800 A at 440 V power circuit |
| Control Circuit Voltage | 110 V AC 50/60 Hz |
| Control Circuit Type | AC 50/60 Hz |
| Pole Contact Composition | 3 NO |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC |
| Operating Time | 20-26 ms closing, 8-12 ms opening |
| Mechanical Durability | 16,000,000 cycles |
| Power Dissipation per Pole | 2.4 W AC-3, 5.4 W AC-1 |
| Heat Dissipation | 6-10 W 50/60 Hz |
| Connections - Terminals | Control and power circuit screw clamp terminals 1-25 mm2 |
| Mounting Support | Plate, Rail |
| Height | 127 mm |
| Depth | 142 mm |
| Material | Not specified |
| Flame Retardance | V1 UL 94 |
| Insulation Resistance | > 10 MOhm signalling circuit |
| Safety Reliability Level | B10d = 1,369,863 cycles nominal load |
| Ambient Air Temperature for Operation | -40 to 60 C, derating above 60 C |
| Operating Altitude | 0 to 3000 m |
| Toxic Heavy Metal Free | Yes |
| PVC Free | Yes |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 |
| Sustainable Offer Status | Green Premium Product |
| Rated Operational Current | 40 A AC-3 and 60 A AC-1 at <= 440 V power circuit |
|---|---|
| Utilisation Category | AC-1, AC-3 |
| Rated Breaking Capacity | 800 A at 220/415/440/500 V, 400 A at 690 V power circuit |
| Rated Short-Time Withstand Current | 320 A 10s, 720 A 1s power circuit |
| Control Circuit Voltage Limits | 0.3-0.6 Uc -40-70 C drop-out AC 50/60 Hz; 0.8-1.1 Uc -40-55 C operational AC 50 Hz; 0.85-1.1 Uc -40-55 C operational AC 60 Hz; 1-1.1 Uc 55-70 C operational AC 50/60 Hz |
| Poles | 3P |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Non-Overlap Time | 1.5 ms energisation and de-energisation between NC and NO contacts |
| Electrical Durability | 1.5M cycles AC-3 40A <=440V; 1.4M cycles AC-1 60A <=440V |
| Maximum Operating Rate | 3600 cycles/h |
| Inrush Power | 200 VA 50 Hz, 220 VA 60 Hz |
| Tightening Torque | Control circuit 1.7 N.m; Power circuit 6 N.m screw clamp terminals |
| Interlocking Type | Mechanical |
| Dimensions (HxWxD) | 5.00 x 6.50 x 5.59 in (127 x 165 x 142 mm) |
| Width | 165 mm |
| Net Weight | 2.4 kg (5.29 lb) |
| Fire Resistance | 960 C IEC 60695-2-1 |
| Pollution Degree | 3 |
| IP Degree of Protection | IP20 front face IEC 60529 |
| Mechanical Robustness | Vibrations 2 Gn open, 3 Gn closed; Shocks 10 Gn closed, 8 Gn open |
| Ambient Air Temperature for Storage | -60 to 80 C |
| RoHS Compliance | Compliant |
| Mercury Free | Yes |
| Product Certifications | BV, CCC, CSA, DNV, GL, RINA, UL, EAC, UKCA |
| Country of Origin | Czech Republic (CZ) |
