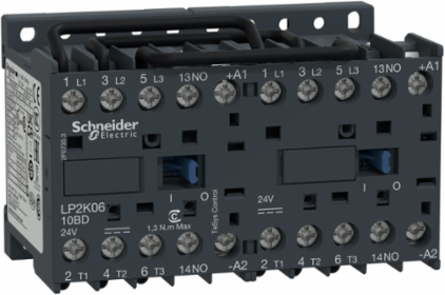

Schneider Electric LP2K1210BD TeSys K Reversing Contactor 3P 12A 24V DC Coil Compact 90mm
- MPN: LP2K1210BD
- PPN: SCH-LP2K1210BD
- UNSPSC: 39121529
CAD
$258.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
LP2K1210BD is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 12A AC-3 5.5kW@400V, it includes a 24V DC coil, 1NO auxiliary contact, a mechanical interlock and a pre-wired reversing circuit. LP2K1210BD is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 5.5kW@400V. Very compact, DIN-rail compatible, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It can be easily integrated into all control systems thanks to its 24V DC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Ready for connection to all control systems thanks to a 24V DC control voltage and 2NO built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).
Features
- Pre-wired power circuit connections as standard on screw clamp versions.
- TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
- The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
- One of the smallest contactor offerings in the market.
- The range delivers strong performance for its compact size and promises seamless integration in all applications
- Widely used for industry, infrastructure and building applications
- Designed for simple control systems
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Depth | 57 mm |
| Weight | 448 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit |
|---|---|
| Control Circuit Type | DC standard |
| Irms Rated Making Capacity | 144 A AC for power circuit conforming to IEC 60947110 A AC for signalling circuit conforming to IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Icw Rated Short Time Withstand Current | 115 A 50 °C - 1 s for power circuit105 A 50 °C - 5 s for power circuit100 A 50 °C - 10 s for power circuit75 A 50 °C - 30 s for power circuit55 A 50 °C - 1 min for power circuit50 A 50 °C - 3 min for power circuit25 A 50 °C - >= 15 min for power circuit80 A - 1 s for signalling circuit90 A - 500 ms for signalling circuit110 A - 100 ms for signalling circuit |
| Ue Rated Operational Voltage | power circuit 690 V AC 50/60 Hzsignalling circuit <= 690 V AC 50/60 Hz |
| Ui Rated Insulation Voltage | signalling circuit 600 V UL 508signalling circuit 600 V CSA C22.2 No 14power circuit 600 V UL 508power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, power circuit 600 V CSA C22.2 No 14 |
|---|---|
| Control Circuit Voltage Limits | operational: 0.8...1.15 Uc (at <50 °C)drop-out: 0.1...0.75 Uc (at <50 °C) |
| Maximum Motor Phase Current | 12 A |
| Minimum Switching Current | 5 mA for signalling circuit |
| Rated Breaking Capacity | 110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947 |
| Uc Control Circuit Voltage | 24 V24 V DC |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660 |
| Electrical Durability | 1.3 Mcycles 12 A AC-3 <= 440 V, 1.3 Mcycles 12 A AC-3e <= 440 V0.3 Mcycles 20 A AC-1 <= 690 V, 0.02 Mcycles 72 A AC-4 <= 440 V |
| Insulation Resistance | > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit |
| Motor Power Kw | 3 kW 220...230 V AC 50/60 Hz5.5 kW 380...415 V AC 50/60 Hz, 5.5 kW 440 V AC 50/60 Hz4 kW 690 V AC 50/60 Hz |
| Protective Treatment | TC IEC 60068, TC DIN 50016 |
| Utilisation Category | AC-3, AC-3e, AC-4, AC-1 |
| Certificate Agency | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Carbon Footprint Of The Distribution Phase A4 | 0.8878524626167142, 0.9 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.1 kg CO2 eq., 0.06103616963299477 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 118 kg CO2 eq., 117.69539266959984 |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Device Application | control |
| Heat Dissipation | 3-3 W |
| Interlocking Type | mechanical |
| Non Overlap Distance | 0.5 mm |
| Operating Time | 30...40 ms coil energisation and NO closing10 ms coil de-energisation and NO opening |
| Pole Contact Composition | 3 NO |
| Product Name | TeSys K |
| Range | TeSys |
| Returnability | No |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 122 kg CO2 eq. |
| Control Circuit Voltage | 24 V |
| Auxiliary Contact Comp | 1 NO |
| Data Source | extrapolated product |
| Width Nominal | 90 mm |
| Customs Code | 8536490065 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 63 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Contactor Application | motor control, resistive load |
| Flame Retardance | V1 conforming to UL 94requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Mechanical Robustness | shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| Mounting Support | rail, plate |
| Tightening Torque | 0.8-1.3 N.m screw clamp terminals Philips No 2, 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m screw clamp terminals pozidriv No 2 |
| Connections Terminals | screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 2 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable endscrew clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid |
| Ith Conventional Free Air Thermal Current | 20 A (at 60 °C) for power circuit, 10 A (at 50 °C) for signalling circuit |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.6447493242807691, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 2.300442552953704 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1503003 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2448 |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | LP2K |
| Device Short Name | LP2K |
| Inrush Power In W | 3-3 W 20 °C) |
| Mechanical Durability | 5 Mcycles |
| Number Of Poles | 3P |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | reversing contactor |
| Range Of Product | TeSys K |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Inf Motor Phase Current | 12 A |
| Database Version | 2024-01 |
| Height Nominal | 58 mm |
| Nbr. Of Units In Pkg. | 1 |
| Hold In Power Consumption In W | 3-3 W 20 °C |
| Functional Unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 291.1824 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-50 °C, -25-50 °C, -25-50 °C, -25-50 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 121.58947317908402 |
| Environmental Disclosure | ENVPEP1503003EN |
| Ip Degree Of Protection | IP20 VDE 0106 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1503003EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -50-80 °C, -50-80 °C, -50-80 °C, -50-80 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1503003 |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-03-23 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | reversing contactor |
|---|
| Range Of Product | TeSys K |
|---|
ETIM
| ETIM 8 | EC000010 |
|---|---|
| ETIM 10 | EC000010 |
| ETIM 9 | EC000010 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | preassembled with reversing power busbar |
|---|
