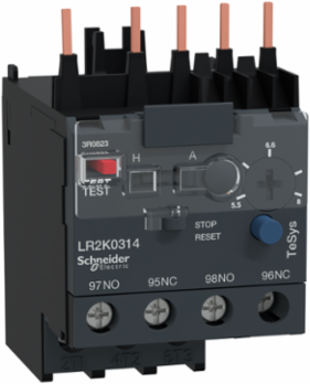

Schneider Electric LR2K0314 TeSys K Thermal Overload Relay, 5.5-8A, Class 10A, IP2X

MPN: LR2K0314
PPN: SCH-LR2K0314
UNSPSC: 39122330

$65.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys K overload relays are designed to be used with TeSys K contactors to make a motor starter. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 5.5 to 8 amperes. This trip current rating is calibrated per Class 10A. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC).

Features

The Schneider Electric LR2K0314 features an adjustable thermal protection setting range of 5.5 to 8 Amps, allowing precision tuning via an integrated front dial. This adjustable current window ensures code-compliant overcurrent protection tailored directly to your specific motor nameplate rating, preventing costly motor burnouts while eliminating frustrating nuisance tripping.
Built with advanced differential mechanics, the unit includes proactive phase failure and load unbalance detection conforming to strict IEC 60947-4-1 standards. By automatically triggering a trip when a single phase drops or an unbalance occurs, it shields your three-phase motors from rapid winding overheating and catastrophic industrial machine failures.
This overload relay features integrated 1 NO + 1 NC auxiliary contacts for fault signaling, a prominent yellow flag trip indicator, and dedicated blue/red push-buttons for stop, manual/auto reset, and test simulations. This allows field electricians to quickly diagnose system faults, test control logic safety loops, and choose the ideal recovery mode to safely minimize operational downtime.
Boasting an IP2X finger-safe shock hazard rating, Class 10A tripping performance, and a robust bimetallic design, this unit handles operational temperatures from -20 C to 55 C without derating. Full compliance with UL, CSA, UKCA, and CE standards guarantees your industrial automation panels satisfy rigorous safety audits and local electrical codes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia
Depth	65 mm

Weight	145 g

Complementary Attributes

Ue Rated Operational Voltage	<= 690 V power circuit, <= 690 V power circuit<= 690 V power circuit, <= 690 V power circuit690 V AC AC-15 signalling circuit, 250 V DC DC-13 signalling circuit
Uimp Rated Impulse Withstand Voltage	6 kV

Ui Rated Insulation Voltage	power circuit 690 V BS 4941, power circuit 690 V IEC 60947power circuit 750 V VDE 0110 group Cpower circuit 600 V CSA C22.2 No 14

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	6 A gG for signalling circuit conforming to VDE 0660, 6 A gG for signalling circuit conforming to IEC 60947
Flame Retardance	V1 conforming to UL 94requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Mounting Support	under contactorplate, with specific accessories, rail, with specific accessories
Network Type	DC, AC
Tightening Torque	1.3 N.m screw clamp terminals Philips No 2, 1.3 N.m screw clamp terminals flat Ø 6 mm, 1.3 N.m screw clamp terminals pozidriv No 2
Certificate Agency	UL, CSA, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3570299549275095, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.9 kg CO2 eq., 0.8931643852450023
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2211018
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	0702
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	LR2K
Fire Resistance	850 °C IEC 60695-2-1
Phase Failure Sensitivity	yes IEC 60947-4-1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	differential thermal overload relay
Range Of Product	TeSys K thermal overload relays
Returnability	Yes
Sustainable Packaging	Yes
Thermal Protection Adjustment Range	5.5-8 A
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	58 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	6 A signalling circuit
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	74.6352

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Control Type	Red push-button trip test functionBlue push-button stop and manual reset, selector switch manual or automatic reset
Mechanical Robustness	vibrations NC contact2 Gn, 5...300 Hz IEC 60068-2-6, shocks NO contact10 Gn for 11 ms IEC 60068-2-27, shocks NC contact10 Gn for 11 ms IEC 60068-2-27, vibrations NO contact2 Gn, 5...300 Hz IEC 60068-2-6
Network Frequency	<= 400 Hz, <= 400 Hz
Protective Treatment	TC IEC 60068, TC DIN 50016
Connections Terminals	screw clamp terminals 2 0.75-4 mm²flexible without cable endscrew clamp terminals 2 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable endscrew clamp terminals 1 0.34-2.5 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase A4	0.017124164486850613, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.043940103606662645
Carbon Footprint Of The Use Phase B2 B3 B4 B6	5 kg CO2 eq., 4.986699999999999
Local Publishable Date	2026-06-27
Device Type	Relay, Control & Measurement - Protection relay
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	LR2K
Local Signalling	trip indicator Yellow)
Power Dissipation Per Pole	2 W
Product Name	TeSys LRK
Range	TeSys
Relay Application	motor protection
Software Version	v5.9.4
Thermal Overload Class	class 10A IEC 60947-4-1
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
R Thermal Protection Adj Range	5.5-8 A
Data Source	extrapolated product
Width Nominal	45 mm
Customs Code	8536490050
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	42

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2211018
Eu Rohs Directive	Compliant
Operating Altitude	6561.68 ft (2000 m) without derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Operation	-20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -30-60 °C with derating IEC 60947, -30-60 °C with derating IEC 60947, -30-60 °C with derating IEC 60947-20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -20-55 °C without derating IEC 60947, -30-60 °C with derating IEC 60947, -30-60 °C with derating IEC 60947
Product Compatibility	LC7K, LC1K, LP4K, LP1K
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	6.297958608266024
Environmental Disclosure	ENVPEP2211018EN
Ip Degree Of Protection	IP2X conforming to IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2211018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
