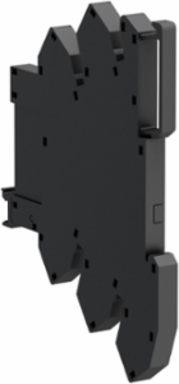

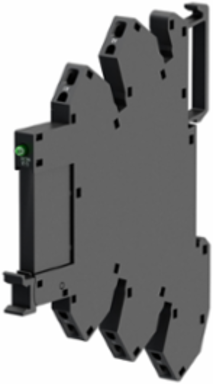

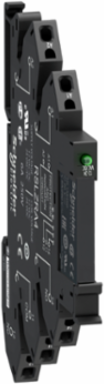

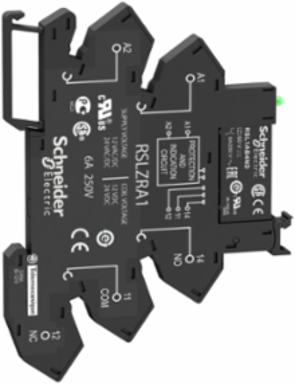

Schneider Electric RSL1PRFU Harmony Slim Interface Relay, 6A, 1 C/O, 110V AC/DC, IP40
Schneider Electric RSL1PRFU Harmony Slim Interface Relay, 6A, 1 C/O, 110V AC/DC, IP40
- MPN: RSL1PRFU
- PPN: SCH-RSL1PRFU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$22.78/ EA
Description
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- CSA || GOST || UL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 5 gn 11 ms) not operating IEC 60068-2-27
- Ip Degree Of Protection
- IP40 IEC 60529
- Input Voltage
- 110 V AC/DC 88...126.5 V)
StandardsIEC 61810-1 || UL 508 || CSA C22.2 No 14
Vibration Resistance10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6 || 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
Dielectric Strength1000 V AC between contacts || 4000 V AC between coil and contact
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Toxic Free
- Yes
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1405004EN
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Phenolic Free SolutionYes
Complementary
- Maximum Switching Capacity
- 1500 VA || 150 W
- Height
- 78.6 mm
- Operating Rate
- <= 72000 cycles/hour no-load || <= 360 cycles/hour under load
- Test Levels
- level A group mounting
- Clamping Force
- 10-40 N
- Contacts Material
- silver alloy (AgSnO2)
- Electrical Durability
- 60000 cycles resistive, 6 A 250 V, AC-1
- Contact Terminal Arrangement
- separate
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC
- Control Type
- without push-button
- Device Presentation
- complete product
- Minimum Switching Capacity
- 120 mW
- [Ie] Rated Operational Current
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- [Ui] Rated Insulation Voltage
- 250 V IEC || 277 V cUL
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 5 ms reset || 12 ms
- Load Current
- 6 A 250 V AC 0.5 mm mounting distance
- Depth
- 101 mm
Safety Reliability DataB10d = 60000
Terminals Description Iso N°1(11-12-14)OC || (A1-A2)CO
Protection CategoryRT III
Mounting Support35 mm symmetrical DIN rail
Fixing Modeplastic compression spring
Reset Time20 ms
MarkingCE
Net Weight0.029 kg
Maximum Switching Voltage277 V
Average Resistance20500 Ohm DC 23 °C +/- 10 %
Connections - Terminalsspring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
Average Coil Consumption0.17 W, DC
Sale Per Indivisible Quantity10
Minimum Switching Current100 mA
Operating Positionany position
Width6.2 mm
Drop-Out Voltage Threshold>= 0.05 Uc
Minimum Switching Voltage12 V
Specifications
- [Uc] Control Circuit Voltage
- 110 V DC
- Shape Of Pin
- flat (PCB type)
- Status Led
- with
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RSL
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typepre-assembled plug-in relay with socket
Series Nameinterface relay
Contact Operationstandard
[Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C
