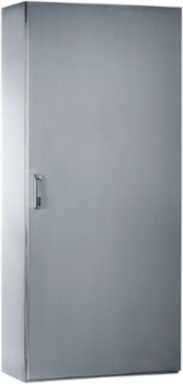

Schneider Electric NSYSMX20850 SMX 304L Stainless Steel Enclosure H2000xW800xD500mm IP66, IK10

MPN: NSYSMX20850
PPN: SCH-NSYSMX20850

Spec sheet

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric NSYSMX20850 SMX enclosure is expertly crafted from 304L stainless steel, providing exceptional durability and corrosion resistance, ideal for harsh environments. With an ingress protection rating of IP66, it ensures complete protection against dust and powerful water jets, making it suitable for a variety of applications in automation, control, and data communication. Measuring 2000mm in height, 800mm in width, and 500mm in depth, this enclosure is designed for enhanced functionality and safety, capable of withstanding impacts with an IK10 rating. Engineers and IT professionals will appreciate its robust construction, ensuring reliable performance while safeguarding sensitive equipment housed inside.

Specifications

IP Degree of Protection: IP66 IEC 60529

Standards: IEC 62208, UL 508, CAN/CSA 22

Height: 2000 mm (78.74 in)

Depth: 500 mm (19.69 in)

Lock Type: 3 points lock, handle with 5 mm double-bar insert

Material: body and door stainless steel 304L, handle zamak, hinge stainless steel

Cable Gland Plate Type: plain

Door Type: plain

Country of Origin: BG (Bulgaria)

IK Degree of ProtectionIK10 IEC 62262

Net Weight119 kg (262.35 lb)

Width800 mm (31.50 in)

Installation Typefloor-standing

Door Opening Sidereversible 120°

Mounting Platenot included

FinishScotch-Brite brushed

Environmental Characteristiccorrosive, specific hygiene
