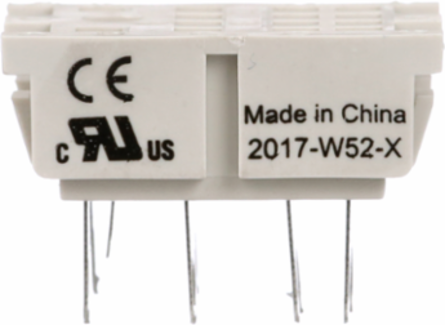

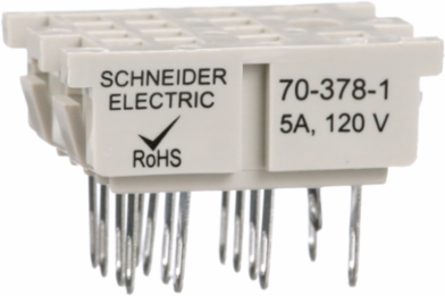

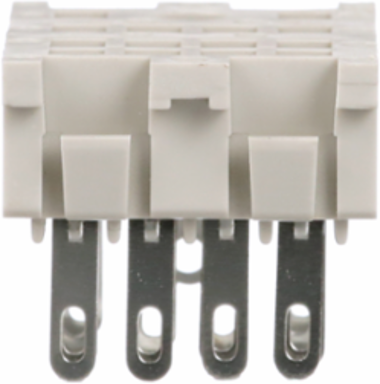

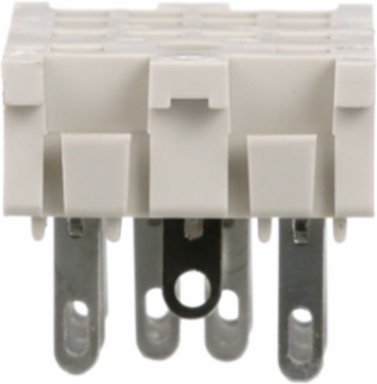

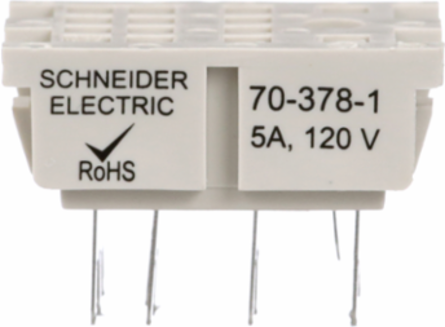

Schneider Electric 70-378-1 Socket, SE Relays, 5A, 14 pins, solder terminals, separate contact, for 782H / 792 relays

MPN: 70-378-1
PPN: SCH-703781
UNSPSC: 39122335

$6.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Legacy general purpose relay series accessory , optional socket for 782H/792 series relays with 4PDT configuration contacts rated 5A at 120V. Solder connect terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Documentation & Downloads

Specifications

Key Specifications

Width	21.8 mm
Product Compatibility	relay 792XDX \|\| relay 782XDXH
Number Of Terminals	14
Contacts Type And Composition	4 C/O

Weight	6.2 g
Range Of Product	Harmony Electromechanical Relays
Product Or Component Type	socket
Switch Function	4PDT

Complementary

Connections - Terminals	chassis solder terminal, clamping connection capacity:0.82 mm², AWG 18 solid for output \|\| chassis solder terminal, clamping connection capacity:0.82 mm², AWG 18 stranded for output
Line Rated Current	5 A
Contact Terminal Arrangement	mixed
[Ue] Rated Operational Voltage	120 V
Depth	57 mm

Tightening Torque	chassis 1 N.m, AWG 18, copper
Fixing Mode	by screw, M3.5 chassis
Net Weight	6.2 g
Width	21.8 mm

Offer Sustainability

Rohs Exemption Information	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile	N/A

Mercury Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
