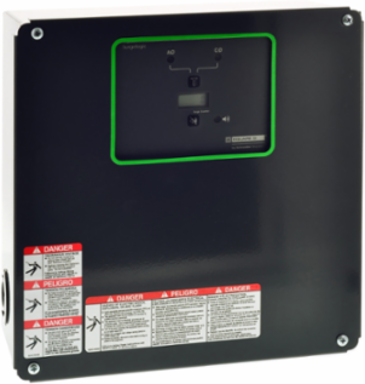

Square D EMA11 Surge protective device, Surgelogic, 100kA, EMA, 120/240V, 1 phase, 3 wire, SPD type 1, UL 1283, NEMA 1
- MPN: EMA11
- UPC: 047569000225
- PPN: SCH-EMA11
CAD
$3077.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surgelogic™ Type EMA systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 100,000 Amps, Indoor rated and includes Surge counter. Rated for 120/240VAC single phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth135 mm
Important Information Attributes
- Noise Level
- -42 dB, -42 dB
- Certificate Agency
- UL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9244124996005056, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.008749180715555228, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 845 kg CO2 eq., 845.4059017557078
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2508025EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Local Signalling
- status LED green per phase normal operationstatus LED red per phase fault
- Phase
- 1 phase
- Product Or Component Type
- surge protection device
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 3-wire
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1752
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 290 mm
- [Iimp] Impulse Current
- 20 kA
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536308000
Provided Equipmentalarm enable/disable switch, surge counter, dry contacts
Connections - Terminalslugs terminal 10 AWG...2 AWG, terminals
Carbon Footprint Of The End-of-life Phase [C1 To C4]13 kg CO2 eq., 12.985389547809287
Carbon Footprint Of The Manufacturing Phase [A1 To A3]80 kg CO2 eq., 80.49899364728077
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameEMA
Frequency Measurement Range47-63 Hz
Nominal Discharge Current20 kA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSurgelogic
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint940 kg CO2 eq.
Pep CodeENVPEP2508025EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %69
Width Nominal208 mm
[Uc] Maximum Continuous Operating Voltage150 V
Short-circuit Protection200 kA
Package Weight(Lbs)7.215 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-65 °C, -40-65 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 939.8234466311139
- Environmental Disclosure
- ENVPEP2508025EN
- Operating Altitude
- 0...12000 ft
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-65 °C, -20-65 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2508025EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2508025EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Provided Equipment
- alarm enable/disable switch, surge counter, dry contacts
- Product Or Component Type
- surge protection device
Phase1 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 100 kA
Input Attributes
- Input Voltage
- 600 V N - G700 V L-N, 700 V L - G1000 V L - L
