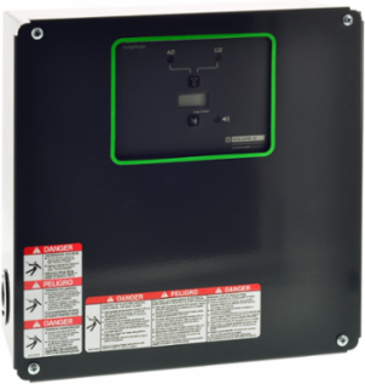

Square D EMA81 Surge protective device, Surgelogic, EMA, 100kA, 600Y/347V, 3 phase, 4 wire, SPD type 1, UL 1283, NEMA 1
- MPN: EMA81
- UPC: 047569000492
- PPN: SCH-EMA81
CAD
$3077.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surgelogic™ Type EMA systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 100,000 Amps, Indoor rated and includes Surge counter. Rated for 600Y/347VAC three phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth135 mm
Important Information Attributes
- Noise Level
- -42 dB, -42 dB
- Certificate Agency
- UL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 13 kg CO2 eq., 12.985389547809287
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 80 kg CO2 eq., 80.49899364728077
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- EMA
- Energy Efficiency Optimized
- False
- Local Signalling
- status LED green per phase normal operationstatus LED red per phase fault
- Phase
- 3 phase
- Product Or Component Type
- surge protection device
- Returnability
- No
- Sustainable Packaging
- No
- Wiring Configuration
- 4-wire
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1752
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 290 mm
- [Iimp] Impulse Current
- 20 kA
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 7.215 kg
- Warranty (In Months)
- 18
Provided Equipmentalarm enable/disable switch, surge counter, dry contacts
Carbon Footprint Of The Distribution Phase [A4]0.9244124996005056, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.008749180715555228, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]845 kg CO2 eq., 845.4059017557078
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2508025EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
Without Single Use PlasticYes
Product Kit IdentifierN
Enclosure Materialpainted sheet steel
Frequency Measurement Range47-63 Hz
Nominal Discharge Current20 kA
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductSurgelogic
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint940 kg CO2 eq.
Pep CodeENVPEP2508025EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %69
Width Nominal208 mm
[Uc] Maximum Continuous Operating Voltage420 V
Connections - Terminalslugs terminal 10 AWG...2 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-65 °C, -40-65 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 939.8234466311139
- Environmental Disclosure
- ENVPEP2508025EN
- Nema Degree Of Protection
- NEMA 1
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2508025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-65 °C, -20-65 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2508025EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...12000 ft
Packaging Without Single Use PlasticYes
Relative Humidity0-95 %
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Provided Equipment
- alarm enable/disable switch, surge counter, dry contacts
- Product Or Component Type
- surge protection device
Phase3 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 100 kA
Input Attributes
- Input Voltage
- 1200 V N - G1500_V L-N, 1500_V L - G2500 V L - L
Accessories
Loading carousel layout...
Loading carousel layout...
Accessories
Loading carousel layout...
Loading carousel layout...
