Surge protective device, Surgelogic, EMA, 200kA, 600Y/347V, 3 phase, 4 wire, SPD type 1, UL 1283, NEMA 1
Surge protective device, Surgelogic, EMA, 200kA, 600Y/347V, 3 phase, 4 wire, SPD type 1, UL 1283, NEMA 1
Square D

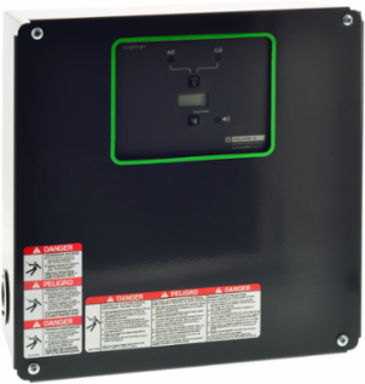

Square D EMA82 Surge protective device, Surgelogic, EMA, 200kA, 600Y/347V, 3 phase, 4 wire, SPD type 1, UL 1283, NEMA 1

  • MPN: EMA82
  • UPC: 047569000508
  • PPN: SCH-EMA82
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Surgelogic™ Type EMA systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 200,000 Amps, Indoor rated and includes Surge counter. Rated for 600Y/347VAC three phase systems. This product is UL and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
Depth135 mm

Important Information Attributes

Noise Level
-42 dB, -42 dB
Certificate Agency
UL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A
Carbon Footprint Of The End-of-life Phase [C1 To C4]
13 kg CO2 eq., 12.985389547809287
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
80 kg CO2 eq., 80.49899364728077
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
1
Weee Product Category
4
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Device Short Name
EMA
Energy Efficiency Optimized
False
Local Signalling
status LED green per phase normal operationstatus LED red per phase fault
Phase
3 phase
Product Or Component Type
surge protection device
Returnability
Yes
Sustainable Packaging
No
Wiring Configuration
4-wire
Database Version
2024-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
1752
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
290 mm
[Iimp] Impulse Current
20 kA
[Ue] Rated Operational Voltage
600Y/347 V AC
Short-circuit Protection
200 kA
Package Weight(Lbs)
7.215 kg
Warranty (In Months)
18
Provided Equipmentalarm enable/disable switch, surge counter
Carbon Footprint Of The Distribution Phase [A4]0.9244124996005056, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.008749180715555228, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]845 kg CO2 eq., 845.4059017557078
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2508025EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
Without Single Use PlasticYes
Product Kit IdentifierN
Enclosure Materialpainted sheet steel
Frequency Measurement Range47-63 Hz
Nominal Discharge Current20 kA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSurgelogic
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint940 kg CO2 eq.
Pep CodeENVPEP2508025EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %69
Width Nominal208 mm
[Uc] Maximum Continuous Operating Voltage420 V
Connections - Terminalslugs terminal 10 AWG...2 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-40-65 °C, -40-65 °C
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
939.8234466311139
Environmental Disclosure
ENVPEP2508025EN
Nema Degree Of Protection
NEMA 1
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Code
ENVPEP2508025EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-20-65 °C, -20-65 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2508025EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...12000 ft
Packaging Without Single Use PlasticYes
Relative Humidity0-95 %
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Provided Equipment
alarm enable/disable switch, surge counter
Product Or Component Type
surge protection device
Phase3 phase
Range Of ProductSurgelogic

Surge Protection And Filtering Attributes

Surge Current
200 kA

Input Attributes

Input Voltage
1200 V N - G1500_V L-N, 1500_V L - G2500 V L - L
