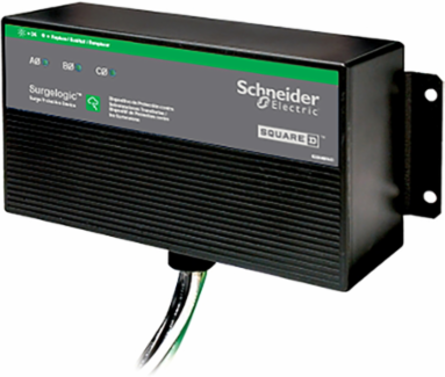

Square D HWA91 Surge protective device, Surgelogic, HWA, 100kA, 600V delta, 3 phase, 3 wire, SPD type 2, UL 1283, NEMA 4X
- MPN: HWA91
- UPC: 047569000911
- PPN: SCH-HWA91
CAD
$3501.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surgelogic™ Type HWA systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 100,000 Amps and Indoor/Outdoor. This is UL type 2 under UL 1283. Rated for 600VAC three phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth74.2 mm
Physical Attributes
- Cable Length
- .61 m, .61 m
Important Information Attributes
- Local Signalling
- status LED green per phase normal operation, status LED red per phase fault
- Provided Equipment
- alarm enable/disable switch, dry contacts
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 4
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- HWA
- Energy Efficiency Optimized
- False
- Nominal Discharge Current
- 20 kA
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Surgelogic
- Sustainable Packaging
- No
- Height Nominal
- 121.9 mm
- [Iimp] Impulse Current
- 10 kA
- [Ue] Rated Operational Voltage
- 600 V delta AC
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 6.499 kg
- Warranty (In Months)
- 18
Noise Level-54 dB, -54 dB
Certificate AgencyUL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A, UL 1283
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
Without Single Use PlasticYes
Product Kit IdentifierN
Enclosure Materialpolycarbonate
Frequency Measurement Range47-63 Hz
Phase3 phase
Product Or Component Typesurge protection device
ReturnabilityNo
Wiring Configuration3-wire
Width Nominal218.9 mm
[Uc] Maximum Continuous Operating Voltage690 V
Connections - Terminalswire AWG 10
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-60 °C, -40-60 °C
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...12000 ft
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-95 %
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Take BackNo
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Provided Equipment
- alarm enable/disable switch, dry contacts
- Product Or Component Type
- surge protection device
Phase3 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 100 kA
Input Attributes
- Input Voltage
- 3000 V L - G, 3000 V L-L
