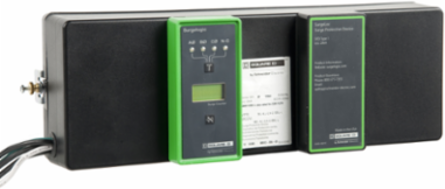

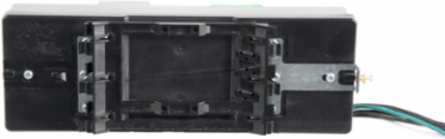

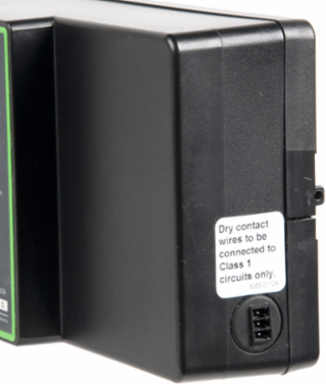

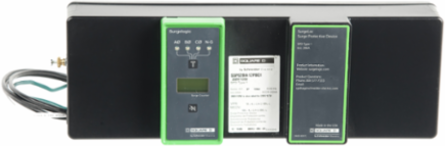

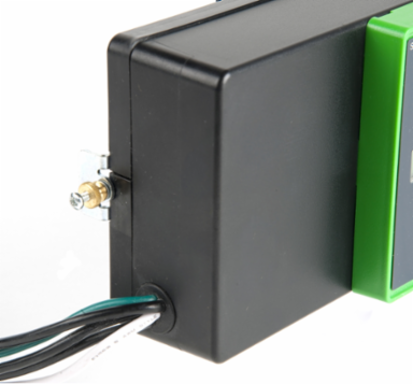

Square D SSP02SBA20D SPD, Surgelogic, 200kA, 208Y/120VAC, 3 phase, 4 wire, SPD type 1

MPN: SSP02SBA20D
UPC: 785901775416
PPN: SCH-SSP02SBA20D
UNSPSC: 39121634

Quote Required

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. Being the industry's first field installable internally mounted SPDs in NQ panelboards, this unit is able to provide a surge current rating of 200,000 Amps. With a surge current rating of 200,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety NQ Panelboards. This unit uses the WYE system to allow two different voltages using three phase.

Features

Installs in two minutes or less
Easy field mounting and retrofitting
Audible, visual, and remote signaling
Manages both thermal and high current events
Advanced diagnostics
Comes in a space-saving design and DOE 2016 fully compliant

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Canada
Depth	175.26 mm

Weight	3400 g

Complementary Attributes

Uc Maximum Continuous Operating Voltage	150 V

Ue Rated Operational Voltage	208Y/120 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM
Carbon Footprint Of The Distribution Phase A4	2.285415610354451, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.3508869795263079, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	71 kg CO2 eq., 71.34340337471716
Local Publishable Date	2026-09-05
Device Type	Surge Protection and Power Conditioning - Surge Protection Devices
Traceability	Yes
Average Life Duration	10 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Surgelogic
Software Version	v6.3.2
Total Lifecycle Carbon Footprint	132 kg CO2 eq.
Wiring Configuration	4-wire
Data Source	extrapolated product
Width Nominal	454.66 mm
Customs Code	8536308000
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	2010
Recyclability Potential In %	7

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The End Of Life Phase C1 To C4	6 kg CO2 eq., 5.63866209958553
Carbon Footprint Of The Manufacturing Phase A1 To A3	52 kg CO2 eq., 51.779387398561845
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2607150EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Phase	3 phase
Product Or Component Type	surge protection device
Returnability	Yes
Sustainable Packaging	No
Type Of Packing	box
Database Version	2026-04
Height Nominal	111.76 mm
Nbr. Of Units In Pkg.	1
Short Circuit Protection	200 kA
Functional Unit Description	Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 150 V, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	700.8
Pep End Of Validity Date Calculated	2031-10-01

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	132.3977554627453
Environmental Disclosure	ENVPEP2607150EN
Nema Degree Of Protection	NEMA 1
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2607150EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2607150EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
