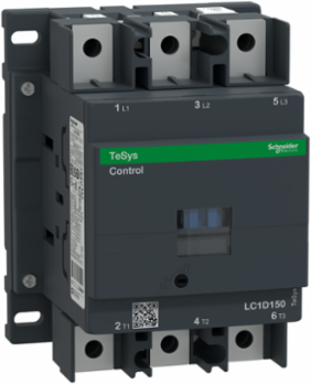

Schneider Electric LC1D1506BD Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 24V DC standard coil, lugs/bars terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 24V DC standard coil, lugs/bars terminals
  • MPN: LC1D1506BD
  • PPN: SCH-LC1D1506BD

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1463.49/ EA

Description

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 24V DC standard coil, lugs/bars terminals

Specifications

Environment

Product Certifications
GL || CSA || CCC || UL || DNV || LROS (Lloyds register of shipping) || RINA || BV || GOST || UKCA || CE
Standards
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
Net Weight
2.5 kg
Protective Treatment
THIEC 60068-2-30
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 6 Gn for 11 ms)
Fire Resistance
850 °C IEC 60695-2-1
Depth
136 mm
Height158 mm
Climatic WithstandIACS E10 exposure to damp heat
Flame RetardanceV1 UL 94
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude0...3000 m
Width120 mm
Permissible Ambient Air Temperature Around The Device-40-60 °C || 60-70 °C with derating

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP060301EN
Pvc Free
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
ENVEOLI100405EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions

Complementary

Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Power Dissipation Per Pole
24 W AC-1 || 13.5 W AC-3 || 13.5 W AC-3e
Auxiliary Contact Composition
1 NO + 1 NC
Control Circuit Voltage Limits
0.75...1.2 Uc -40-55 °C operational DC || 0.15...0.4 Uc -40-70 °C drop-out DC || 1...1.2 Uc 55-70 °C operational DC
Contact Compatibility
M10
Safety Reliability Level
B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W
2.4-5.1 W 20 °C
Rated Breaking Capacity
1400 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating
10 A gG for signalling circuit conforming to IEC 60947-5-1 || 315 A gG at <= 690 V coordination type 1 for power circuit || 250 A gG at <= 690 V coordination type 2 for power circuit
Pole Contact Composition
3 NO
Coil Technology
with integral suppression device
Operating Time
20...35 ms closing || 40...75 ms opening
Maximum Operating Rate
1200 cyc/h 60 °C
Tightening Torque
control circuit 1.2 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.2 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 12 N.m lugs-ring terminals hexagonal 13 mm M8 || power circuit 12 N.m bars hexagonal 13 mm M8 || control circuit 1.2 N.m lugs-ring terminals pozidriv No 2 M3.5
Mechanical Durability
8 Mcycles
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Overvoltage Category
III
Motor Power Kw
40 kW at 220...230 V AC 50/60 Hz (AC-3) || 75 kW at 380...400 V AC 50/60 Hz (AC-3) || 80 kW at 415...440 V AC 50/60 Hz (AC-3) || 90 kW at 500 V AC 50/60 Hz (AC-3) || 100 kW at 660...690 V AC 50/60 Hz (AC-3) || 75 kW at 1000 V AC 50/60 Hz (AC-3) || 22 kW at 400 V AC 50/60 Hz (AC-4) || 40 kW at 220...230 V AC 50/60 Hz (AC-3e) || 75 kW at 380...400 V AC 50/60 Hz (AC-3e) || 80 kW at 415...440 V AC 50/60 Hz (AC-3e) || 90 kW at 500 V AC 50/60 Hz (AC-3e) || 100 kW at 660...690 V AC 50/60 Hz (AC-3e) || 75 kW at 1000 V AC 50/60 Hz (AC-3e)
[Icw] Rated Short-Time Withstand Current
250 A 40 °C - 10 min for power circuit || 580 A 40 °C - 1 min for power circuit || 1200 A 40 °C - 10 s for power circuit || 1400 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
Minimum Switching Current5 mA for signalling circuit
Average Impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current200 A (at 60 °C) for power circuit
Mounting Supportrail || plate
Control Circuit TypeDC standard
Pollution Degree3
Insulation Resistance> 10 MOhm for signalling circuit
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 1660 A at 440 V for power circuit conforming to IEC 60947
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947
Connections - Terminalscontrol circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 25 mm || power circuit: bars 1 - busbar cross section: 5 x 25 mm
Time Constant25 ms
Minimum Switching Voltage17 V for signalling circuit
Signalling Circuit Frequency25...400 Hz
Electrical Durability0.85 Mcycles 150 A AC-3 <= 440 V || 1 Mcycles 200 A AC-1 <= 440 V || 0.85 Mcycles 150 A AC-3e <= 440 V
Inrush Power In W270-365 W 20 °C)
Compatibility CodeLC1D
Motor Power Hp40 hp at 200/208 V AC 50/60 Hz for 3 phases motors || 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors || 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors || 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
[Ui] Rated Insulation Voltagepower circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Protective Coverwith

Specifications

[Uc] Control Circuit Voltage
24 V DC
Range Of Product
TeSys Deca
Product Or Component Type
contactor
Utilisation Category
AC-3 || AC-1 || AC-4 || AC-3e
Poles Description
3P
[Ue] Rated Operational Voltagepower circuit <= 1000 V AC 25...400 Hz || power circuit <= 300 V DC
Contactor Applicationmotor control || resistive load
RangeTeSys
[Ie] Rated Operational Current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Device Short NameLC1D
