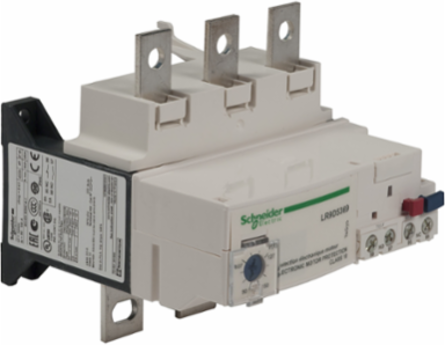

Schneider Electric LR9D5369 TeSys Deca Thermal Overload Relay 90-150A Class 10
- MPN: LR9D5369
- PPN: SCH-LR9D5369
CAD
$571.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LR9D5369 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 90-150A, selectable tripping class 10-10A and phase unbalance protection, it protects motors 55 to 75kW@400V. LR9D5369 is a TeSys LR9D electronic overload relay from Schneider Electric to be combined with a TeSys D contactor. With a thermal setting range 90-150A, a selectable tripping class 10-10A and phase unbalance detection, it protects motors 55 to 75kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). To be combined with Tesys LC1D115-D150 contactors. Light and compact, 120mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Selectable tripping class 10 or 10A. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth125 mm
Complementary Attributes
- Maximum Voltage Drop
- <2.5 V closed state, <2.5 V closed state<2.5 V closed state, <2.5 V closed state
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mounting Support
- under contactor, rail
- Temperature Compensation
- -20-60 °C, -20-60 °C
- [Ui] Rated Insulation Voltage
- power circuit 1000 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.5885445505961475, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.11271819735008072
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 127 kg CO2 eq., 126.69793890788517
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LR9D
- Device Short Name
- LR9D
- Network Frequency
- 50-60 Hz
- Phase Failure Sensitivity
- tripping in 4 s +/- 20 % IEC 60947-4-1
- Product Or Component Type
- electronic thermal overload relay
- Relay Application
- motor protection
- Signalling Function
- alarm
- Supply Voltage Limits
- 17-32 V
- Switching Capacity In Ma
- 0...150 mA
- Thermal Protection Adjustment Range
- 90-150 A
- Total Lifecycle Carbon Footprint
- 133 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2212018EN
- Pep Verification Date
- 2025-06-20
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 118 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations2 Gn, 5...300 Hz IEC 60068-2-6, shocks13 Gn for 11 ms IEC 60068-2-7
Product NameTeSys LRD, TeSys Deca
Certificate AgencyUL, CSA, CCC, UKCA
Connections - Terminalspower circuit barscontrol circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end, control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end, alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.6370650693830773, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.300183391790282
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2212018
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1001
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control TypeRed push-button stopBlue push-button reset
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Network TypeAC
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Software Versionv6.1
Sustainable PackagingNo
Thermal Overload Classclass 10 IEC 60947-4-1
Tightening Torquealarm circuit 0.45 N.m screw clamp terminalspower circuit 18 N.m bars M8control circuit 1.2 N.m screw clamp terminals
Tripping Threshold1.05 +/- 0.06 In alarm IEC 60947-4-11.12 +/- 0.06 In de-energisation IEC 60947-4-1
R Thermal Protection Adj Range90-150 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe functional unit of the LR9F7375 is to detect overload currents in order to protect the load for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %92
Width Nominal115 mm
[Ue] Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
[Us] Rated Supply Voltage24 V DC
Package Weight(Lbs)920.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Product Compatibility
- NSX circuit breaker, LC1D150, LC1D115
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 133.33645011700477
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-20
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2212018
Environmental DisclosureENVPEP2212018EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212018EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- electronic thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
