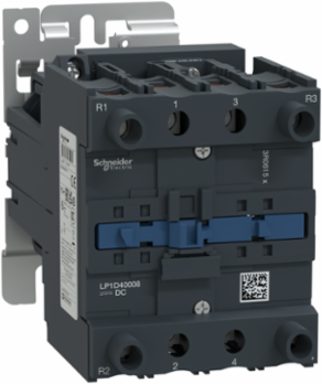

Schneider Electric LP1D40008ED Contactor, TeSys Deca, 4P(2NO+2NC),AC-1, <=440V, 60A,48V DC coil, screw clamp terminal
Schneider Electric LP1D40008ED Contactor, TeSys Deca, 4P(2NO+2NC),AC-1, <=440V, 60A,48V DC coil, screw clamp terminal
- MPN: LP1D40008ED
- PPN: SCH-LP1D40008ED
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$825.38/ EA
Description
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 48V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UL || CSA || CCC || EAC || UKCA || CB || DNV-GL || RINA || BV || LROS (Lloyds register of shipping)
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
- Flame Retardance
- V1 UL 94
- Mechanical Robustness
- shocks contactor open 8 Gn for 11 ms) || shocks contactor closed 10 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)
- Fire Resistance
- 850 °C IEC 60695-2-1
- Depth
- 182 mm
Height127 mm
Net Weight2.21 kg
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude0...3000 m
Width85 mm
Permissible Ambient Air Temperature Around The Device-40-60 °C || 60-70 °C with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Power Dissipation Per Pole
- 5.4 W AC-1
- [Ith] Conventional Free Air Thermal Current
- 60 A (at 60 °C) for power circuit
- Mounting Support
- rail || plate
- Control Circuit Type
- DC DC standard
- Pollution Degree
- 3
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
- Pole Contact Composition
- 2 NO + 2 NC
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Operating Time
- 4...19 ms opening || 12...26 ms closing
- Tightening Torque
- power circuit 8 N.m screw clamp terminals 25-35 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 5 N.m screw clamp terminals 1-25 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- Mechanical Durability
- 10 Mcycles
- Compatibility Code
- LP1D
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
- Protective Cover
- without
Average Impedance1.5 mOhm - Ith 60 A 50 Hz for power circuit
Control Circuit Voltage Limits0.1...0.3 Uc -40-55 °C drop-out DC || 0.85...1.1 Uc -40-55 °C operational DC
Contact CompatibilityM3
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W22-22 W 20 °C
Irms Rated Making Capacity800 A at 440 V for power circuit conforming to IEC 60947
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Connections - Terminalspower circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: solid || power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
Time Constant75 ms
Maximum Operating Rate3600 cyc/h 60 °C
Electrical Durability1.4 Mcycles 60 A AC-1 <= 440 V
Inrush Power In W22-22 W 20 °C)
Overvoltage CategoryIII
[Icw] Rated Short-Time Withstand Current72 A 40 °C - 10 min for power circuit || 165 A 40 °C - 1 min for power circuit || 320 A 40 °C - 10 s for power circuit || 720 A 40 °C - 1 s for power circuit
Specifications
- [Uc] Control Circuit Voltage
- 48 V DC
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- Utilisation Category
- AC-1
- Poles Description
- 4P
[Ue] Rated Operational Voltagepower circuit <= 1000 V AC 25...400 Hz
Contactor Applicationresistive load
RangeTeSys
[Ie] Rated Operational Current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Device Short NameLP1D
