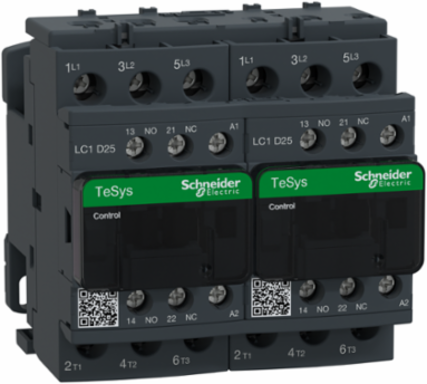

Schneider Electric LC2D25P7 TeSys Deca Reversing Contactor 3P 25A 230V AC 50/60Hz
- MPN: LC2D25P7
- PPN: SCH-LC2D25P7
CAD
$689.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
| Product Certifications | DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA || CB |
|---|---|
| [Uc] Control Circuit Voltage | 230 V AC 50/60 Hz |
| Power Dissipation Per Pole | 1.25 W AC-3 || 3.2 W AC-1 || 1.25 W AC-3e |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Mounting Support | rail || plate |
| Standards | CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1 |
| Contactor Application | motor control || resistive load |
| Product Or Component Type | reversing contactor |
| Product Name | TeSys D || TeSys Deca |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Range | TeSys || TeSys Deca |
| Device Presentation | preassembled with reversing power busbar |
| [Ie] Rated Operational Current | 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2 |
| Mechanical Durability | 15 Mcycles |
| Operating Time | 12...22 ms closing || 4...19 ms opening |
| Motor Power Kw | 5.5 kW at 220...230 V AC 50...60 Hz || 11 kW at 380...400 V AC 50...60 Hz || 11 kW at 415 V AC 50...60 Hz || 11 kW at 440 V AC 50...60 Hz || 15 kW at 500 V AC 50...60 Hz || 15 kW at 660...690 V AC 50...60 Hz |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL |
| [Icw] Rated Short-Time Withstand Current | 50 A 40 °C - 10 min for power circuit || 120 A 40 °C - 1 min for power circuit || 240 A 40 °C - 10 s for power circuit || 380 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit |
| Interlocking Type | mechanical |
|---|---|
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) for signalling circuit || 40 A (at 60 °C) for power circuit |
| Control Circuit Type | AC 50/60 Hz |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Rated Breaking Capacity | 450 A at 440 V for power circuit conforming to IEC 60947 |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit |
| Connections - Terminals | control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid || power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 1 1-10 mm²flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm²solid || power circuit screw clamp terminals 2 2.5-10 mm²solid |
| Pole Contact Composition | 3 NO |
| Utilisation Category | AC-1 || AC-3 || AC-3e |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Electrical Durability | 1.65 Mcycles 25 A AC-3 <= 440 V || 1.4 Mcycles 40 A AC-1 <= 440 V || 1.65 Mcycles 25 A AC-3e <= 440 V |
| Poles Description | 3P |
| Overvoltage Category | III |
| Motor Power Hp | 3 hp at 230/240 V AC 60 Hz for 1 phase motors || 5 hp at 200/208 V AC 60 Hz for 3 phases motors || 2 hp at 115 V AC 60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 60 Hz for 3 phases motors || 15 hp at 460/480 V AC 60 Hz for 3 phases motors || 20 hp at 575/600 V AC 60 Hz for 3 phases motors |
| Device Short Name | LC2D |
| Protective Cover | with |
Complementary
| Non-Overlap Time | 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact |
|---|---|
| Control Circuit Voltage Limits | 0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz |
| Inrush Power In Va | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1 |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Minimum Switching Current | 5 mA for signalling circuit |
|---|---|
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Coil Technology | without built-in suppressor module |
| Signalling Circuit Frequency | 25...400 Hz |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
Environment
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms |
|---|---|
| Height | 85 mm |
| Pollution Degree | 3 |
| Flame Retardance | V1 UL 94 |
| Protective Treatment | TH IEC 60068-2-30 |
| Operating Altitude | 0...3000 m |
| Width | 90 mm |
| Ambient Air Temperature For Operation | -40-60 °C || 60-70 °C with derating |
|---|---|
| Climatic Withstand | IACS E10 || IEC 60947-1 Annex Q category D |
| Net Weight | 0.787 kg |
| Ambient Air Temperature For Storage | -60-80 °C |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Fire Resistance | 850 °C IEC 60695-2-1 |
| Depth | 92 mm |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110229EN |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI110229EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
