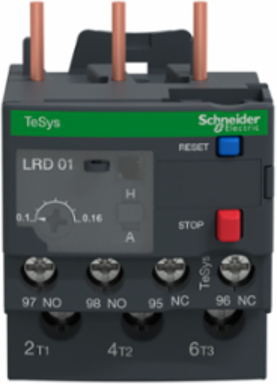

Schneider Electric LRD01 TeSys Deca Thermal Overload Relay 0.1-0.16A 690VAC 1NO+1NC Class 10A
- MPN: LRD01
- PPN: SCH-LRD01
CAD
$124.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LRD01 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors less than 0.06kW@400V thanks to a thermal range 0.10-0.16A, a tripping class 10A and phase unbalance protection. LRD01 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 0.10-0.16A, a tripping class 10A and phase unbalance detection, it protects motors less than 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Features
- Specifically engineered for hyper-precise micro-current monitoring, this premium bimetallic relay features an adjustable thermal setting range from 0.1A to 0.16A.
- This TeSys Deca component mounts directly beneath standard 3-pole TeSys D contactors including LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, and LC1D38 units utilizing pre-aligned power terminals. By snapping directly into the bottom pins of the parent contactor, it eliminates the need for any inter-device jumper wiring or extra DIN rail real estate, preserving valuable panel space and significantly slashing assembly labor costs.
- Equipped with an advanced differential tripping mechanism, this relay features integrated phase-unbalance detection and phase-loss sensitivity conforming to strict IEC 60947-4-1 standards. If a single phase drops completely or an extreme current unbalance occurs across your lines, the internal slide mechanism accelerates the Class 10A trip curve instantly dropping out the control circuit to isolate the motor before expensive winding damage or localized overheating can occur.
- The front-facing interface includes an intuitive, color-coded dual-control system consisting of a red stop/test push-button and a blue manual-automatic reset selector. Industrial maintenance teams can switch the selector to automatic mode for remote, unattended reset cycles after a cooling period, or lock it into manual mode to force a technician to visually inspect the field equipment and diagnose the underlying fault condition before restarting.
- Featuring an integrated 1NO + 1NC (one Normally Open and one Normally Closed) auxiliary contact arrangement rated up to 690V AC, this relay handles isolated signaling and hardwired safety interlocks simultaneously.
- Fully certified to CSA C22.2 No 60947-4-1, and UL. This heavy-duty relay features a rugged, vibration-resistant housing built to survive harsh industrial environments from -20 C to +60 C without ambient derating. It incorporates IP20 finger-safe screw clamp terminals to enhance safety during routine maintenance, and features a clear, tamper-proof transparent sealing flap that completely shields the dial settings from unauthorized field adjustments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Thailand, United States |
|---|
| Depth | 70 mm |
|---|
Important Information Attributes
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
|---|---|
| Mounting Support | plate, with specific accessories, rail, with specific accessories, under contactor |
| Permissible Current | 3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit |
| Range | TeSys, TeSys Deca |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.024163479198025903, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.01635889814277638 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 12 kg CO2 eq., 11.633004615445152 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Device Type | Relay, Control & Measurement - Protection relay |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Control Type | Red push-button stopBlue push-button reset |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Network Frequency | 0...400 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Relay Application | motor protection |
| Software Version | v6.1 |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP0802006EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Europe, EU-27 |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Recyclability Potential In % | 50 |
| Width Nominal | 45 mm |
| [Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490055 |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7 |
|---|---|
| Network Type | DC, AC |
| Product Name | TeSys LRD, TeSys Deca |
| Temperature Compensation | -20-60 °C, -20-60 °C |
| Certificate Agency | IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA |
| Connections - Terminals | power circuit screw clamp terminals 1 1-4 mm² flexible with cable endpower circuit screw clamp terminals 1 1-6 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.21678519324421383, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.0267614686619415 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI0802006 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0627 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | LRD |
| Device Short Name | LRD |
| Flame Retardance | V1 conforming to UL 94 |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Product Or Component Type | differential thermal overload relay |
| Returnability | Yes |
| Sustainable Packaging | No |
| Thermal Protection Adjustment Range | 0.1-0.16 A |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| R Thermal Protection Adj Range | 0.1-0.16 A |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 28.3824 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 66 mm |
| [Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Package Weight(Lbs) | 136.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -60-70 °C, -60-70 °C |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI0802006 |
| Environmental Disclosure | ENVPEP0802006EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1 |
|---|---|
| Product Compatibility | LC1D25, LC1D09, LC1D12, LC1D18, LC1D38, LC1D32 |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 12.917073654692109 |
| Climatic Withstand | IACS E10 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0802006EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | differential thermal overload relay |
|---|
ETIM
| ETIM 8 | EC000106 |
|---|
| ETIM 9 | EC000106 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
