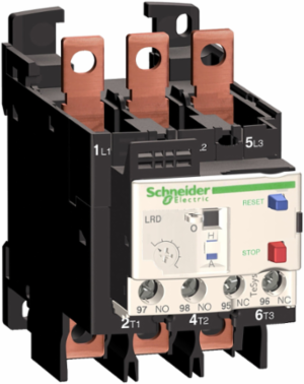

Schneider Electric LRD3326 TeSys Deca Thermal Overload Relay 23-32A 1NO+1NC Class 10A
- MPN: LRD3326
- PPN: SCH-LRD3326
CAD
$243.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 10A, for protection of 3-phase motors less than 0.06kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals or lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth123 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mounting Support
- plate, with specific accessories, rail, with specific accessories, under contactor
- Permissible Current
- 0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
- Temperature Compensation
- -20-60 °C, -20-60 °C
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.532707701, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.060948491, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 1.896335784
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Connection Pitch
- 17.5 mm
- Device Short Name
- LRD
- Flame Retardance
- V1 conforming to UL 94
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Product Or Component Type
- differential thermal overload relay
- Relay Application
- motor protection
- Software Version
- v6.1
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminalspower circuit 6 N.m lugs-ring terminals M6
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- R Thermal Protection Adj Range
- 23-32 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 28.3824
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 123 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Package Weight(Lbs)
- 382 g
- Warranty (In Months)
- 18
Mechanical Robustnessshocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
Network TypeDC, AC
Product NameTeSys LRD, TeSys Deca
Certificate AgencyIEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable endpower circuit lugs-ring terminals
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.871212274
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.45216814
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI0804005
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeLRD
Control TypeRed push-button stopBlue push-button reset
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Network Frequency0...400 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
ReturnabilityNo
Sustainable PackagingYes
Thermal Protection Adjustment Range23-32 A
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0804005EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %27
Width Nominal55 mm
[Ue] Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0804005
- Environmental Disclosure
- ENVPEP0804005EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D50A, LC1D65A, LC1D40A
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint3.81337239
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0804005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
