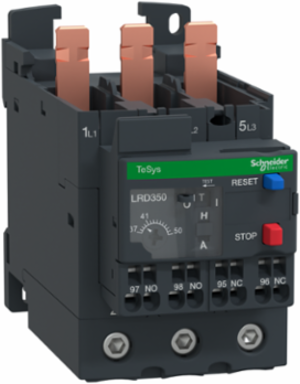

Schneider Electric LRD3503 TeSys Deca Thermal Overload Relay 37-50A Class 10A 1NO+1NC
- MPN: LRD3503
- PPN: SCH-LRD3503
CAD
$270.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys LRD thermal overload relay, 50A/690V, thermal setting range 37-50A, tripping class 10A, for protection of 3-phase motors 22kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth123 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mechanical Robustness
- shocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
- Network Type
- AC, DC
- Product Name
- TeSys LRD, TeSys Deca
- Temperature Compensation
- -20-60 °C, -20-60 °C
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, power circuit 690 V IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.532707701, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.060948491, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 2 kg CO2 eq., 1.896335784
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- LRD
- Flame Retardance
- V1 conforming to UL 94
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Product Or Component Type
- differential thermal overload relay
- Returnability
- No
- Sustainable Packaging
- Yes
- Thermal Protection Adjustment Range
- 37-50 A
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0804005EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 27
- Width Nominal
- 55 mm
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Control TypeRed push-button stop, Blue push-button reset
Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
RangeTeSys, TeSys Deca
Certificate AgencyIEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
Connections - Terminalscontrol circuit spring terminals 1 1-2.5 mm² flexible without cable endpower circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end, control circuit spring terminals 1 1-2.5 mm² solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.871212274
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.45216814
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI0804005
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeLRD
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Network Frequency0...400 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Relay Applicationmotor protection
Software Versionv6.1
Thermal Overload Classclass 10A IEC 60947-4-1
Tightening Torquepower circuit 5 N.m EverLink BTR screw connectors
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range37-50 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh28.3824
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal70 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Package Weight(Lbs)431.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0804005
- Environmental Disclosure
- ENVPEP0804005EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D50A, LC1D40A, LC1D65A
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint3.81337239
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0804005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
