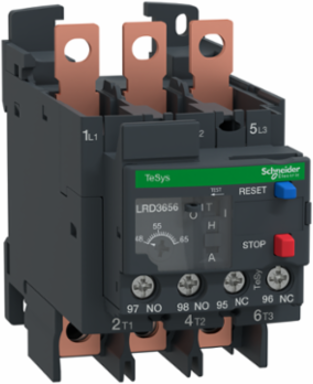

Schneider Electric LRD3656 TeSys Deca Thermal Overload Relay 48-65A Class 10A IP20
- MPN: LRD3656
- PPN: SCH-LRD3656
CAD
$299.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys LRD thermal overload relay, 65A/690V, thermal setting range 48-65A, tripping class 10A, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth123 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mechanical Robustness
- shocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
- Network Type
- DC, AC
- Product Name
- TeSys LRD, TeSys Deca
- Temperature Compensation
- -20-60 °C, -20-60 °C
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit lugs-ring terminals
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.871212274
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.45216814
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI0804005
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- LRD
- Device Short Name
- LRD
- Flame Retardance
- V1 conforming to UL 94
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Product Or Component Type
- differential thermal overload relay
- Returnability
- Yes
- Sustainable Packaging
- No
- Thermal Protection Adjustment Range
- 48-65 A
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- R Thermal Protection Adj Range
- 48-65 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 28.3824
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 70 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Package Weight(Lbs)
- 385.000 g
- Warranty (In Months)
- 18
Control TypeRed push-button stop, Blue push-button reset
Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
RangeTeSys, TeSys Deca
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals, power circuit 6 N.m lugs-ring terminals M6
[Ui] Rated Insulation Voltagepower circuit 600 V CSA, power circuit 600 V UL, power circuit 690 V IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]0.532707701, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.060948491, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 kg CO2 eq., 1.896335784
Local Publishable Date2025-05-31
Stocking FlagN
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Connection Pitch17.5 mm
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Network Frequency0...400 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Relay Applicationmotor protection
Software Versionv6.1
Thermal Overload Classclass 10A IEC 60947-4-1
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0804005EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential, In %27
Width Nominal55 mm
[Ue] Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0804005
- Environmental Disclosure
- ENVPEP0804005EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D50A, LC1D65A
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint3.81337239
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0804005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
