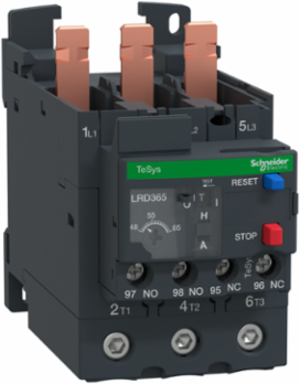

Schneider Electric LR3D365 Thermal overload relay, TeSys Deca, 690VAC, 48 to 65A, 1NO+1NC, class 10A, for unbalanced loads
Schneider Electric LR3D365 Thermal overload relay, TeSys Deca, 690VAC, 48 to 65A, 1NO+1NC, class 10A, for unbalanced loads
- MPN: LR3D365
- PPN: SCH-LR3D365
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$266.09/ EA
Description
TeSys LRD thermal overload relay, 65A/690V, thermal setting range 48-65A, tripping class 10A, for protection of 3-phase motors 30kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Specifications
Environment
- Product Certifications
- IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5
- Ambient Air Temperature For Operation
- -20-60 °C without derating IEC 60947-4-1
- Ip Degree Of Protection
- IP20 IEC 60529
- Ambient Air Temperature For Storage
- -60-70 °C
Mechanical Robustnessshocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
Climatic WithstandIACS E10
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Flame RetardanceV1 UL 94
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP080405EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI0804005_V1
Complementary
- Network Frequency
- 0...400 Hz
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Net Weight
- 0.375 kg
- Permissible Current
- 0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
- Mounting Support
- plate, with specific accessories || rail, with specific accessories || under contactor
- Depth
- 123 mm
Height70 mm
Auxiliary Contact Composition1 NO + 1 NC
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Associated Fuse Rating4 A gG for signalling circuit || 4 A BS for signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Control Typered push-button stop || blue push-button reset
Width55 mm
Temperature Compensation-20-60 °C
Specifications
- Network Type
- DC || AC
- Relay Application
- motor protection
- Product Name
- TeSys LRD || TeSys Deca
- Range
- TeSys || TeSys Deca
- Product Compatibility
- LC1D50A || LC1D65A
Thermal Protection Adjustment Range48-65 A
Product Or Component Typenon differential thermal overload relay
Thermal Overload Classclass 10A IEC 60947-4-1
[Ui] Rated Insulation Voltagepower circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Device Short NameLR3D
