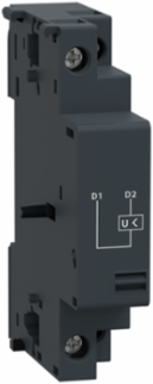

Schneider Electric GVAU385 TeSys Deca Undervoltage Release, 380-400V AC, 0.105 kg, Mercury Free
- MPN: GVAU385
- PPN: SCH-GVAU385
CAD
$105.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV electrical trip, MN undervoltage release, 380-400V AC 50Hz / 440V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- CS, Czechia, United States
Depth66 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- 0.85...1.1 Un
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Durability
- 10000 cycles with GV3P and GV3L, 30000 cycles with GV2ME and GV2P
- Range Of Product
- TeSys GV2, TeSys GV3, TeSys Deca
- Control Circuit Voltage 14
- 380...400 V AC 50 Hz, 440 V AC 60 Hz
- [Ui] Rated Insulation Voltage
- 690 V AC IEC 60947-1, 600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207006
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GVAU
- Inrush Power In Va
- 12-12 VA AC
- Operating Time
- 10...15 ms IEC 60947-1
- Product Or Component Type
- undervoltage release
- Returnability
- Yes
- Threshold Tripping Voltage
- 0.7...0.35 Un
- Pep Code
- ENVPEP2207006EN
- Width Nominal
- 18 mm
- Hold-in Power Consumption In W
- 1.1-1.1 W
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
RangeTeSys, TeSys Deca
Tightening Torque< 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals< 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals
[Uc] Control Circuit Voltage380...400 V AC 50 Hz, 440 V AC 60 Hz
Connections - Terminalsscrew clamp terminals 2 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 0.75-1.5 mm²flexible with cable endscrew clamp terminals 1 1-2.5 mm²solid, screw clamp terminals 2 1-2.5 mm²solid, screw clamp terminals 1 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 0.75-1.5 mm²flexible with cable end
Local Publishable Date2025-07-09
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGVAU
Inrush Power In W8 W
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 10
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal89 mm
Hold-in Power Consumption In Va3.5-3.5 VA AC
On-load Factor100 %
Package Weight(Lbs)107.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
General Attributes
- Range Of Product
- TeSys GV2, TeSys GV3, TeSys Deca
Product Or Component Typeundervoltage release
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
