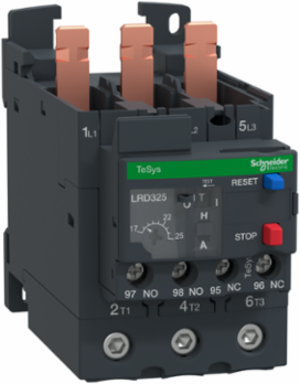

Schneider Electric LR3D325 TeSys Deca Thermal Overload Relay 690VAC 17-25A Class 10A
- MPN: LR3D325
- PPN: SCH-LR3D325
CAD
$217.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
LR3D325 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 9-11kW@400V thanks to a thermal range 17-25A , a tripping class 10A, for use with unbalanced loads. LR3D325 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 17-25A and tripping class 10A, it protects unbalanced loads and motors 11kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D40A-D65A to form a compact starter. Light and compact, 55mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth123 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mechanical Robustness
- shocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
- Network Type
- DC, AC
- Product Name
- TeSys LRD, TeSys Deca
- Temperature Compensation
- -20-60 °C, -20-60 °C
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), UKCA
- Connections - Terminals
- power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable endcontrol circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.383733582
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.237182271
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI0804005
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LR3D
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Relay Application
- motor protection
- Software Version
- v6.1
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Total Lifecycle Carbon Footprint
- 7 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0804005EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 27
- Width Nominal
- 55 mm
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Control TypeRed push-button stop, Blue push-button reset
Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
RangeTeSys, TeSys Deca
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals, power circuit 5 N.m EverLink BTR screw connectors
[Ui] Rated Insulation Voltagepower circuit 600 V CSA, power circuit 600 V UL, power circuit 690 V IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]1.457547461, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.166761845, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 kg CO2 eq., 1.896335784
Local Publishable Date2026-04-12
Stocking FlagY
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLR3D
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typenon differential thermal overload relay
ReturnabilityYes
Sustainable PackagingYes
Thermal Protection Adjustment Range17-25 A
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range17-25 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh28.3824
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal70 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Package Weight(Lbs)450.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0804005
- Environmental Disclosure
- ENVPEP0804005EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D50A, LC1D40A, LC1D65A
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint7.141560943
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0804005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- non differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
