Schneider Electric VCF6 TeSys Vario Switch Disconnector - 175A, 3 Poles, IP65, Door Mounting
Schneider Electric VCF6 TeSys Vario Switch Disconnector - 175A, 3 Poles, IP65, Door Mounting
- MPN: VCF6
- PPN: SCH-VCF6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$492.72/ EA
Description

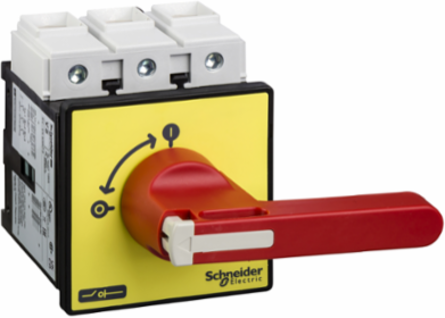

TeSys Vario switch disconnector for door mounting, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- GL || UL || CSA || CCC || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529 || IP65
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- AC || DC
- Fixing Mode
- by 4 screws handle
- Handle Colour
- red
- Base Dimension
- 90 x 90 mm
- Performance Level
- high performance
- Making Capacity
- 1750 A 400 V AC-21A || 1750 A 400 V AC-22A || 1750 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 95-95 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 2.8 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch door
- Poles Description
- 3P
- Tightening Torque
- power circuit 22.6-22.6 N.m screw clamp terminals
- Breaking Capacity
- 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG
Rotary Handle Mounting Styledirect
Height125 mm
[Ith] Conventional Free Air Thermal Current175 A
Handle Front Plate Colouryellow
[Ithe] Conventional Enclosed Thermal Current140 A
Marking0 - 1
Net Weight1.2 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
[Ie] Rated Operational Current83 A AC-23 Ue: 400 V
Mechanical Durability30000 cycles
Width90 mm
Device Compositionhandle || switch
Rated Operational Power In W30 kW 230...240 V AC-3) || 37 kW 400...415 V AC-3) || 37 kW 690 V AC-3) || 45 kW 500 V AC-3) || 45 kW 690 V AC-23A) || 55 kW 500 V AC-23A) || 30 kW 230...240 V AC-23A) || 45 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current2100 A 400 V 1 s
Specifications
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
Product NameTeSys VARIO
Device Short NameVCF
