Schneider Electric VCD2 TeSys Vario Switch Disconnector, 40A, 3 Poles, IP65, Door Mounting
- MPN: VCD2
- PPN: SCH-VCD2
CAD
$191.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

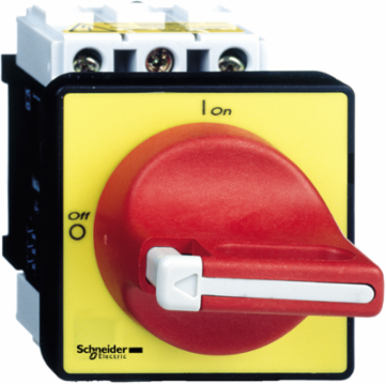

TeSys Vario switch disconnector for door mounting, 3 poles, 40A/690V, for motor switching applications up to 15kW@400V AC-23. Complete unit composed of a switch body V2, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Engineered as a high-performance 3-pole (3NO) TeSys Vario switch-disconnector, this unit is rated for an operational current of 40A and up to 690V AC. It supports motor switching applications up to 15 kW at 400V under demanding AC-23A utilization categories, enabling immediate and reliable on-load making and breaking of highly inductive circuits without danger of contact failure.
- This complete unit comes equipped with a high-visibility, ergonomic red rotary handle matched against a bold 60x60mm yellow front plate. This standardized color architecture satisfies global industrial safety standards for emergency stop positioning, allowing facility workers to immediately locate and isolate machinery power feeds during an operational emergency.
- Built with comprehensive padlocking security features, the red rotary handle can accept between 1 to 3 independent padlocks (diameters from 4 to 8 mm) simultaneously when placed in the "0" (OFF) position. This hardware capability keeps your lockouts robust and tamper-resistant, safeguarding field maintenance teams from accidental circuit re-energization during intensive apparatus cleanings or repairs.
- Designed with a simplified single-hole central fixing configuration, this disconnector mounts through a standard 22.5 mm cutout on any control enclosure front door. The physical layout separates the exterior operator handle from the main interior switch body (V2 frame), ensuring optimal terminal access behind the door while keeping the front layout exceptionally clean.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current (Amperage)
- 40 A
- Rated Operational Voltage
- 690 V AC 50/60 Hz
- Conventional Free Air Thermal Current
- 40 A
- Making Capacity (I rms)
- 400 A @ 400 V AC-21A/22A/23A
- Rated Conditional Short Circuit Current
- 10 kA @ 400 V
- Rated Short Time Withstand Current
- 480 A @ 400 V for 1 s
- Contact Type and Composition
- 3 NO
- Height
- 74 mm (2.91 in)
- Base Dimension
- 60 x 60 mm
- Tightening Torque
- 2.1 N·m (18.59 lbf·in) screw clamp terminals
- Control Type
- rotary handle
- Front Plate Color
- yellow
- IP Degree of Protection
- IP20, IP65 IEC 60529
- Product Certifications
- UL, GL, CCC, CSA, UKCA
- Mechanical Robustness
- vibrations 10-150 Hz 1 gn, shocks 11 ms 30 Gn IEC 60068-2-6/-27
- Fire Resistance
- 960 °C (1760 °F) IEC 60695-2-1
- Warranty
- 18 months
Number of Poles3P
Rated Operational PowerUp to 15 kW @ 400 V AC-23A
Conventional Enclosed Thermal Current32 A
Breaking Capacity320 A @ 400 V AC-21A/22A/23A
Rated Short Circuit Making Capacity1 kA @ 400 V at lpeak
Rated Impulse Withstand Voltage8 kV
Mounting Typedoor mounting with 22.5 mm hole
Width60 mm (2.36 in)
Product Weight0.215 kg (0.47 lb)
Device Compositionhandle, switch
Handle Colorred
Rotary Handle Padlocking1 to 3 padlocks, 4 to 8 mm
StandardsIEC 60947-3
Protective TreatmentTC
Ambient Air Temperature for Operation-20 to 50 °C (-4 to 122 °F)
SustainabilityGreen Premium compliant, RoHS/REACh, halogen free, mercury free, PVC free
