Schneider Electric VCFN12GE TeSys Mini-VARIO Enclosed Switch Disconnector 10A 690V IP65

MPN: VCFN12GE
PPN: SCH-VCFN12GE

$122.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

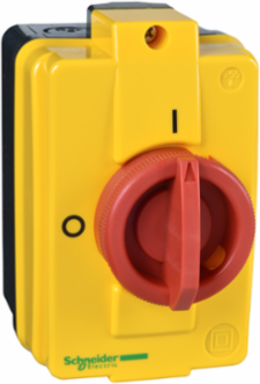

VCFN12GE is a direct-on-line TeSys enclosed starter from Schneider Electric. Enclosure fitted with a yellow cover, red padlockable rotary handle, and a 3-pole VN12 switch body with 2 possible add-on module attachments. Rated The 10A 690V, it is used for main and emergency stop switching in motor applications up to 4kW@400V AC-23. Cabling through 2 cable glands on top and bottom, it provides IP55 protection. It conforms to IEC 60947-4-1.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United States

Depth	106 mm

Physical Attributes

Handle Color	red

Handle Front Plate Color	yellow

Complementary Attributes

Rated Operational Power In W	4 kW 400 V AC-23)3 kW 400 V AC-3)

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Making Capacity	120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
Rated Conditional Short-circuit Current	6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.9 kg CO2 eq., 0.9233618308721394
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.219621900620638
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	enclosed switch disconnector
Device Short Name	VCFN
Fire Resistance	960 °C IEC 60595-2-1
Marking	0 - 1
Mechanical Robustness	vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
Performance Level	standard
Product Name	TeSys Mini-VARIO
Protective Treatment	TC
Returnability	Yes
Software Version	v6.1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	17 kg CO2 eq.
Handle Color	red
Pep Code	ENVPEP2211019EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; France, FR
Height Nominal	131 mm
Certificate Agency	IEC 60947-4-1
[Icw] Rated Short-time Withstand Current	140 A 400 V 1 s
[Ithe] Conventional Enclosed Thermal Current	10 A
[Uimp] Rated Impulse Withstand Voltage	8 kV
Package Weight(Lbs)	304.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Connections - Terminals	control circuit connector 4-4 mm² flexible with cable end, control circuit connector 4-4 mm² solid
Carbon Footprint Of The Distribution Phase [A4]	0.08223377598037848, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.06673302834232597, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	13 kg CO2 eq., 13.432378470046519
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1936
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Base Dimension	60 x 60 mm
Control Type	rotary handle
Electrical Durability	30000 cycles DC-1...550000 cycles AC-21
Intermittent Duty Class	30
Mechanical Durability	50000 cycles
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	emergency stop switch disconnector
Range	TeSys
Rotary Handle Padlocking	1 to 3 padlocks 4-8 mm
Suitability For Isolation	yes
Tightening Torque	control circuit 0.7-0.7 N.m connector
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Color	yellow
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Czech Republic, CZ
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %	20
Width Nominal	82.5 mm
[Icm] Rated Short-circuit Making Capacity	0.5 kA 400 V at Ipeak
[Ie] Rated Operational Current	8.1 A AC-23A)400 V
[Ue] Rated Operational Voltage	690 V AC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509025

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Toxic Heavy Metal Free	Yes
Carbon Footprint	16.724329005862
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2211019EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Operation	-20-50 °C, -20-50 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211019EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
