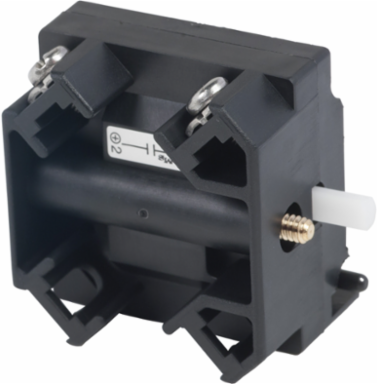

Schneider Electric 9001KA42 Harmony 9001K Contact Block 120V, 1 NO, Screw Clamp Terminals, Hermetically Sealed
- MPN: 9001KA42
- UPC: 785901498551
- PPN: SCH-9001KA42
- UNSPSC: 39121522
CAD
$55.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Hermetically sealed logic reed contact block are for low energy level circuits. This hermetically sealed logic reed contact blocks will work on 9001K, 9001SK and 9001KX operators. There are some restrictions on how they can be mounted to ensure proper operation. Contact block has one normally open contact. Contact block has pressure wire connectors. Terminals will accept one or two solid or stranded wire from 18AWG to 14 AWG. Terminals should be tightened to 5 to 8 lb-in. Contact block is UL Listed and CSA certified. "This product is compatible with Harmony 9001K pushbuttons and switches." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Features
- 10A cartridge fuse short-circuit protection
- Hermetically sealed contacts
- Improved security thanks to finger-safe contact blocks
- Wide range of operating temperature from -25°C to 70°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Weight | 39 g |
|---|
Complementary Attributes
| Icm Rated Short Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-130.27 kA 250 V DC-13 |
|---|---|
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13 |
| Uimp Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA |
|---|---|
| Ui Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Us Rated Supply Voltage | 120 V |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contact Operation | logic reed, hermetically sealed |
| Connections Terminals | screw-clamp terminals, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| Carbon Footprint Of The Distribution Phase A4 | 0.0050998419777364195, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.00028750465287776097, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-25 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NO |
| Device Short Name | 9001K |
| Positive Opening | with IEC 60947-5-2 |
| Product Or Component Type | contact block |
| Returnability | Yes |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Customs Code | 8536509035 |
| Short Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Functional Unit Description | Contact blocks are an important electrical component used in a variety of industrial applications. It provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.135 W with 35% utilisation rate and the product has a life of 10 years and adhering to standards IEC 60947-1 & IEC 60947-5-1. |
| Functional Unit Unit | Unit |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | Harmony 9001K, Harmony 9001SK |
| Certificate Agency | NEMA, UL 508 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.11010717421076659 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.29474944692207744 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | 9001K |
| Contacts Usage | hermetically sealed contacts |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Shape Of Screw Head | cross slotted |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 0.41024396776345823 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2312033EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2312033EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
| Product Or Component Type | contact block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|---|
| ETIM 10 | EC000041 |
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
