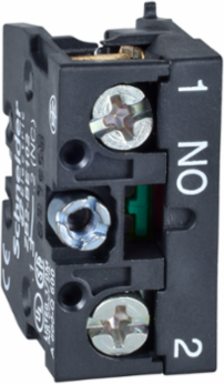

Schneider Electric ZB2BE201 Harmony XAC Contact Block, Single NO, Spring Return, 600V, 10A
Schneider Electric ZB2BE201 Harmony XAC Contact Block, Single NO, Spring Return, 600V, 10A
- MPN: ZB2BE201
- PPN: SCH-ZB2BE201
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$28.97/ EA
Description
This product is part of the Harmony XAC range, an offer of pendant control stations for Ø 22 mm plastic signaling units." "This contact block operates with a spring return mechanism for control circuits." "It has 1 NO contact with staggered, slow break operation." "It is a contact block with a rated voltage of 600V and conventional enclosed thermal current of 10A." "It is furnished with screw clamp terminals for electrical connection." "It offers mechanical durability of about 1 million cycles." "It is suitable for hoist and traveling cranes for control of single speed motor. It is ideal for industry and service sector applications." "This product meets EN/IEC 60204-32, UL 508, EN/IEC 60947-5-1 and CSA C22.2 No 14 standards." "It is compatible with the pendant control stations XACA." "It supports front mounting method." "It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards." "Pendant control stations for Ø 22mm plastic signaling units."
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class II IEC 61140
StandardsIEC 60204-32 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Operating Force
- 13-15 N
- Maximum Resistance Across Terminals
- 25 MOhm
- Short-Circuit Protection
- 10 A fuse protection cartridge gG (gl)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
Terminals Description Iso N°1(13-14)NO_CL
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.015 kg
Connections - Terminalsscrew clamps terminals, 1 x 2.5 mm² with or without cable end || screw clamps terminals, 2 x 1.5 mm² with or without cable end
Mechanical Durability1000000 cycles
Rated Operational Power In W40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1 || 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1 || 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Specifications
- Mounting Of Block
- front mounting
- Contact Block Type
- single
- Contact Block Application
- up / down operator
- Contacts Type And Composition
- 1 NO
- Type Of Operator
- spring return
- Product Compatibility
- XACA
Range Of ProductHarmony XAC
Product Or Component Typecontact block
Component NameZB2
Contact Operationstaggered || slow-break
Electrical Circuit Typecontrol circuit
