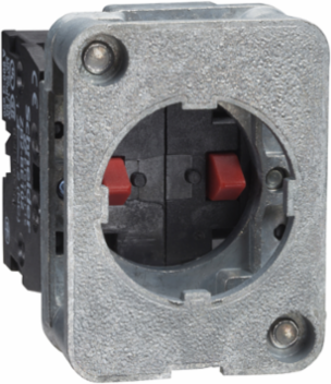

Schneider Electric XACS414 Harmony XAC Spring Return Contact Block 2NC, 40mm Horizontal, 30mm Vertical Fixing
- MPN: XACS414
- PPN: SCH-XACS414
CAD
$81.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This spring return contact block is a separate component for double insulated, XACB pendant control station. It is designed for front mounting and features 2 NC contacts.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Of Block
- front mounting
- Contact Block Type
- single
- Component Name
- XACS
- Contact Operation
- slow-break
- Type Of Operator
- spring return
- Product Compatibility
- ZA2B... head || XACA
Range Of ProductHarmony XAC
Product Or Component Typecontact block
Contacts Type And Composition2 NC
Mechanical Interlockingwithout mechanical interlock
Electrical Circuit Typecontrol circuit
Complementary
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Maximum Resistance Across Terminals
- 25 MOhm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Net Weight
- 0.07 kg
- Vertical Fixing Centres
- 30 mm
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Rated Operational Power In W
- 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Terminals Description Iso N°1(21-22)NC || (11-12)NC
Horizontal Fixing Centres40 mm
Short-Circuit Protection10 A fuse protection cartridge gG
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Rated Operational Power In Va140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive || 525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive
Contact Code DesignationA300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsCSA C22.2 No 14 || IEC 60947-5-1
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
